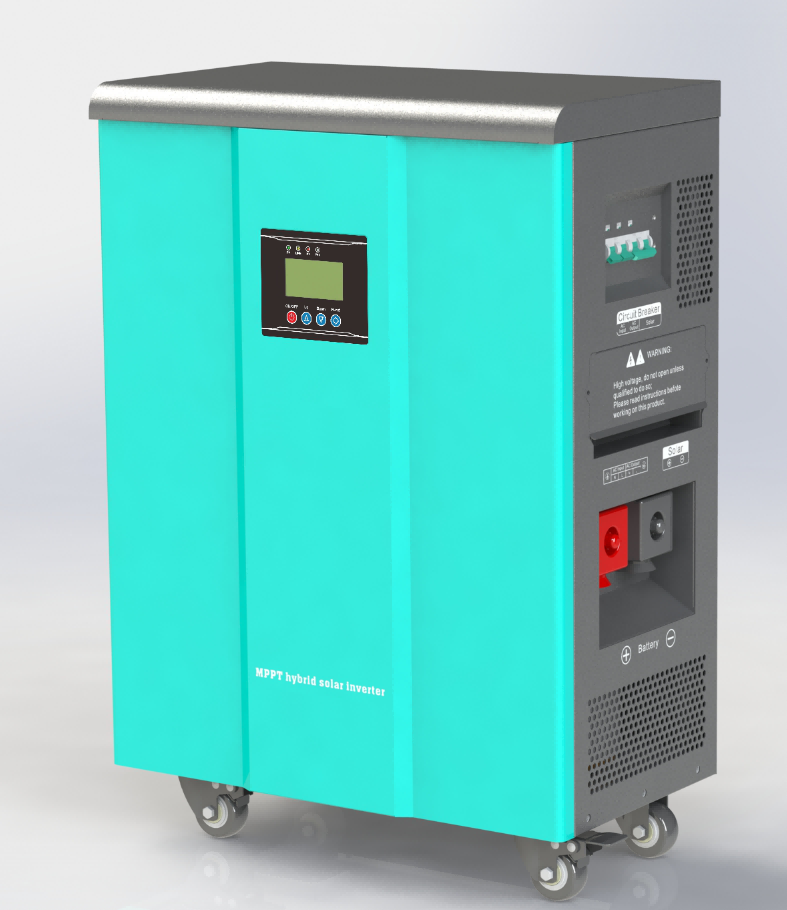

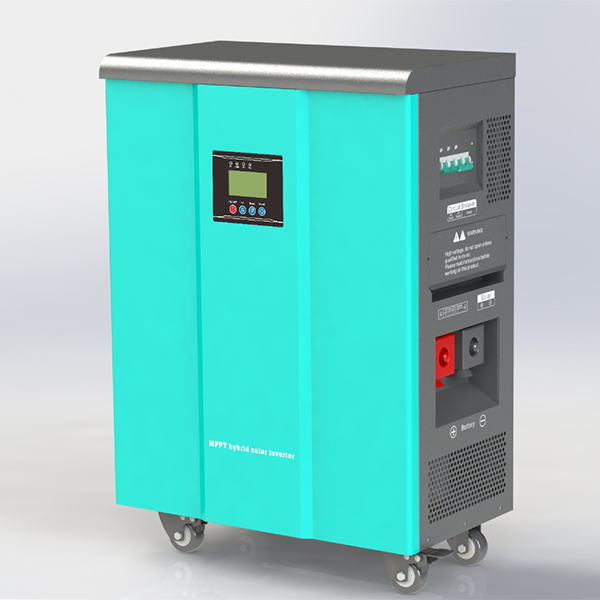

SNADI NKT MPPT Solar Inverter
NKT MPPT Solar Inverter offers pure sine wave output (220/230VAC), built-in 60A/100A MPPT (150Vdc), and supports lithium battery activation. It's compatible with LiFePO4 via RS485, has an LCD for real-time display, detachable dust cover, and low-frequency design. Supports SBU/SUB modes, RS232/RS485/dry contact, and battery equalization to extend battery life.
●Pure sine wave 220VAC/230VAC
●Built-in MPPT 60A 100A PV Input 150Vdc
●Lithium battery activation function by PV or Utility
●Compatible work with LiFePO4 battery via RS485
●Pure Sine Wave-Power factor 1.0
●LCD real-time display of the device parameters, running state at a glance
●Detachable dust cover for harsh environment
●Low frequency(Built in ring transformer)
●Support multiple output priority: SBU,SUB
●Communication interface:RS232/RS485/Dry contact
●EQ function to optimize battery performance and extend lifecycle
Customized production that meets your needs
Model：8KW、10KW
NKT MPPT Solar Inverter offers pure sine wave output (220/230VAC), built-in 60A/100A MPPT (150Vdc), and supports lithium battery activation. It's compatible with LiFePO4 via RS485, has an LCD for real-time display, detachable dust cover, and low-frequency design. Supports SBU/SUB modes, RS232/RS485/dry contact, and battery equalization to extend battery life.
◆Pure sine wave 220VAC/230VAC
◆Built-in MPPT 60A 100A PV Input 150Vdc
◆Lithium battery activation function by PV or Utility
◆Compatible work with LiFePO4 battery via RS485
◆Pure Sine Wave-Power factor 1.0
◆LCD real-time display of the device parameters, running state at a glance
◆Detachable dust cover for harsh environment
◆Low frequency(Built in ring transformer)
◆Support multiple output priority: SBU,SUB
◆Communication interface:RS232/RS485/Dry contact
◆EQ function to optimize battery performance and extend lifecycle
| Model | NKT-10KVA | NKT-12.5KVA | |
| Power Rating | 8000W | 10000W | |
| Battery | Rated Voltage | 48VDC | |
| AC Charge Current | 0~30A MAX | ||
| Battery Type | Can be set | ||
| Input | Voltage Range | 170~275VAC | |
| Frequency | 45~65Hz | ||
| Output | Voltage Range | 220VAC±5%(Inverter mode) | |
| Frequency | 50/60Hz±1%( Inverter mode) | ||
| Output Wave | Pure Sine Wave | ||
| Conversion Time | <10ms(Typical load) | ||
| Efficiency | >85% (80% Resistive load) | ||
| Overcharge | 110~120%/60s;120~130%/10s;130~150%/2s;>150%/500ms | ||
| Protection Function | Battery over-voltage and low-voltage protection, overload protection, short circuit protection, over-temperature protection | ||
| Solar Controller | MPPT Voltage Range | 65~150VDC | |
| PV Power | 4000W | 5000W | |
| Rated Charge Current | 80A(Max) | 100A(Max) | |
| MPPT Efficiency | ≥99% | ||
| Average Charging Voltage(lead acid battery) | 56.8VDC | ||
| Floating Charge Voltage | 55.2VDC | ||
| Operating Ambient Temperature | -15~50°C | ||
| Storage Ambient Temperature | -20~50°C | ||
| Operating/Storage Environment | 0~90% No Condensation | ||
| Dimensions:W*D*H(mm) | 47G*319*877 | ||
| Packing Size: W*D*H(mm) | 575*420*950 | ||
| Net Weight (KG) | 58.5 | 78 | |
| Gross Weight (KG) | 76 | 96.5 | |
