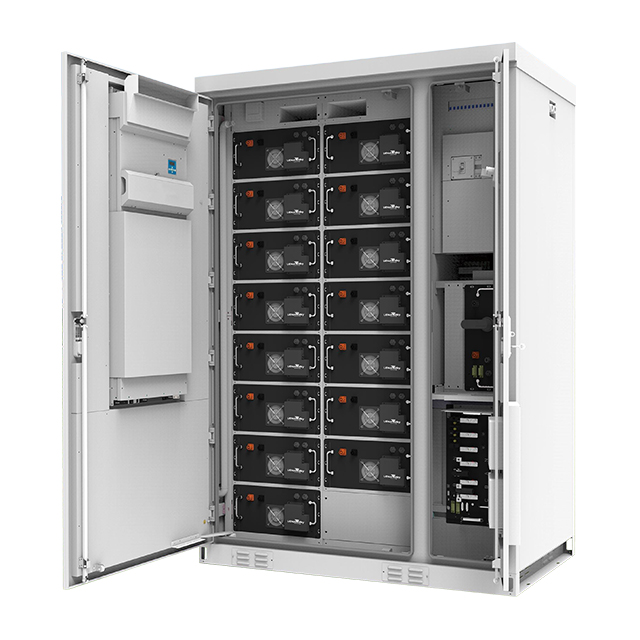

SNADI Integrated PV Energy Storage Cabinet
Built-in fire, flood, and temperature control with system warnings for safety. Dual fire suppression, ATS/STS ensure seamless power switching. Integrated BMS/PCS/EMS supports diverse applications. DC coupling, full fault protection, low battery cycling, auto current sharing, and fast delivery with reliable testing.
MAIN FEATURES
●Built-in fire control,flooding,temperature control,system warning function formultiple security
●Dual Fire suppression system desian
●When BAT supplies are insufficient,ATS switches the power supply to DG or grid
●STS performs on-grid and off-grid seamless switching to ensure continuouspower supply of load
●Integrated BMS/PCS/EMS,suitable for various applications
●DC coupling system ensuring
●Complete fault protection,low baittery circulation,automatic current sharingfor multiple parallel machines,fully tested before delivery
●MachinesFully tested before delivery
●Provide various application solutions,fast delivery and installatiof
Customized production that meets your needs
Built-in fire, flood, and temperature control with system warnings for safety. Dual fire suppression, ATS/STS ensure seamless power switching. Integrated BMS/PCS/EMS supports diverse applications. DC coupling, full fault protection, low battery cycling, auto current sharing, and fast delivery with reliable testing.
MAIN FEATURES
●Built-in fire control,flooding,temperature control,system warning function formultiple security
●Dual Fire suppression system desian
●When BAT supplies are insufficient,ATS switches the power supply to DG or grid
●STS performs on-grid and off-grid seamless switching to ensure continuouspower supply of load
●Integrated BMS/PCS/EMS,suitable for various applications
●DC coupling system ensuring
●Complete fault protection,low baittery circulation,automatic current sharingfor multiple parallel machines,fully tested before delivery
●MachinesFully tested before delivery
●Provide various application solutions,fast delivery and installatiof
| Part Number | NKG-S215A100 | ||
| DC Data | Battery Side |
Battery Chemistry | Lithium Iron Phosphate(LiFePO4) |
| Cycle Life | ≥8000(@25°C,0.5C/0.5C,70%EOL) | ||
| Cell Spec | 3.2V/280Ah | ||
| String Configuration | 1P240S | ||
| Number Of Strings | 1 | ||
| Rack Rated Energy Capacity | 215KW | ||
| Nominal Voltage | 768V | ||
| Co Input Voltage Range | 600~950V | ||
| Max Input Current | 185A | ||
| Max PV Input Power | 120KW | ||
| PV Open Circuit Voltage Range | 200~950V | ||
| MPPT Working Voltage Range | 200~850V | ||
| Rated PV Input Voltage | 600V | ||
| MPPT Start Voltage | 250V | ||
| MPPT Input Route | 4(each max input 50A) | ||
| Max Charge Current | 180A | ||
| AC Data | On Grid | Max Output Power | 100KW |
| Max Output Current | 152A | ||
| Rated Voltage | 230V(single phase)/400V(3 phase) | ||
| Frequency Range | 50/60Hz | ||
| Harmonic Wave | <3%(greater than 30%load) | ||
| Off Grid | Max Output Power | 100KW | |
| Max Output Current | 152A | ||
| Rated Voltage | 230V(single phase)/400V(3 phase) | ||
| Frequency Range | 50/60Hz | ||
| Harmonic Wave | ＜1.5%(resistive load) | ||
| Imbalance | 100% | ||
| Overload | 125%/10s;150%/0.1s | ||
| Max Efficiency | 98.78% | ||
| General Data |
Dimension(WDH)mm | 1600*1100*2360 | |
| Weight Of The Whole System | <3000kg | ||
| Degree Of Protection | IP55 | ||
| Operating Temperature Range | -20~40°C | ||
| Relative Humidity | 0~95%(non-condensing) | ||
| Max Working Altitude | 3000m(9.842ft) | ||
| Cooling Method | HVDC | ||
| Communication Interfaces | CAN/RS485/Ethernet | ||
| Communication Protocol | Modbus/IEC 61850 | ||
| Certifications | EN62477,EN IEC61000,CE,UN38.3,UN3536,IEC62619(Applying) | ||
