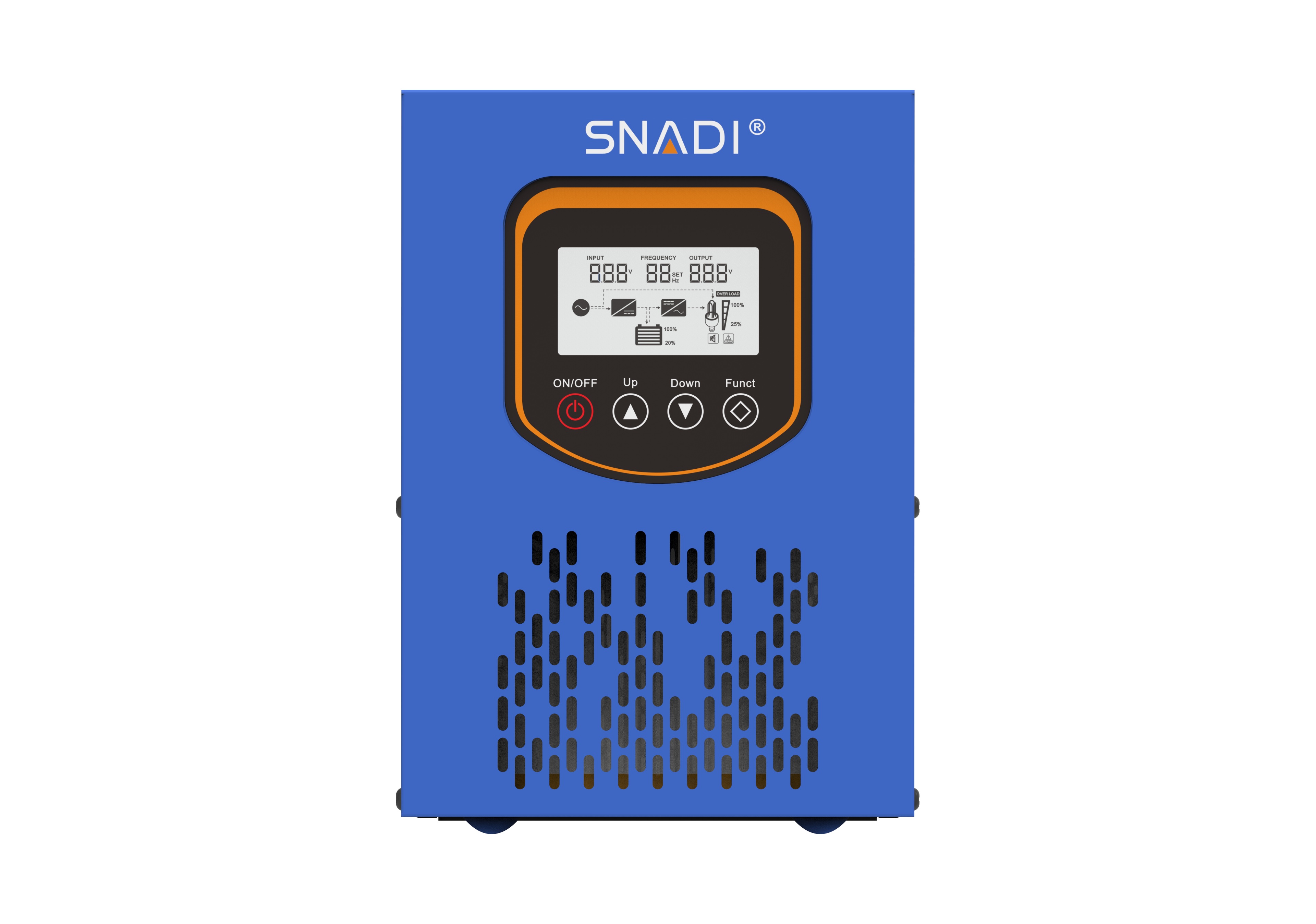

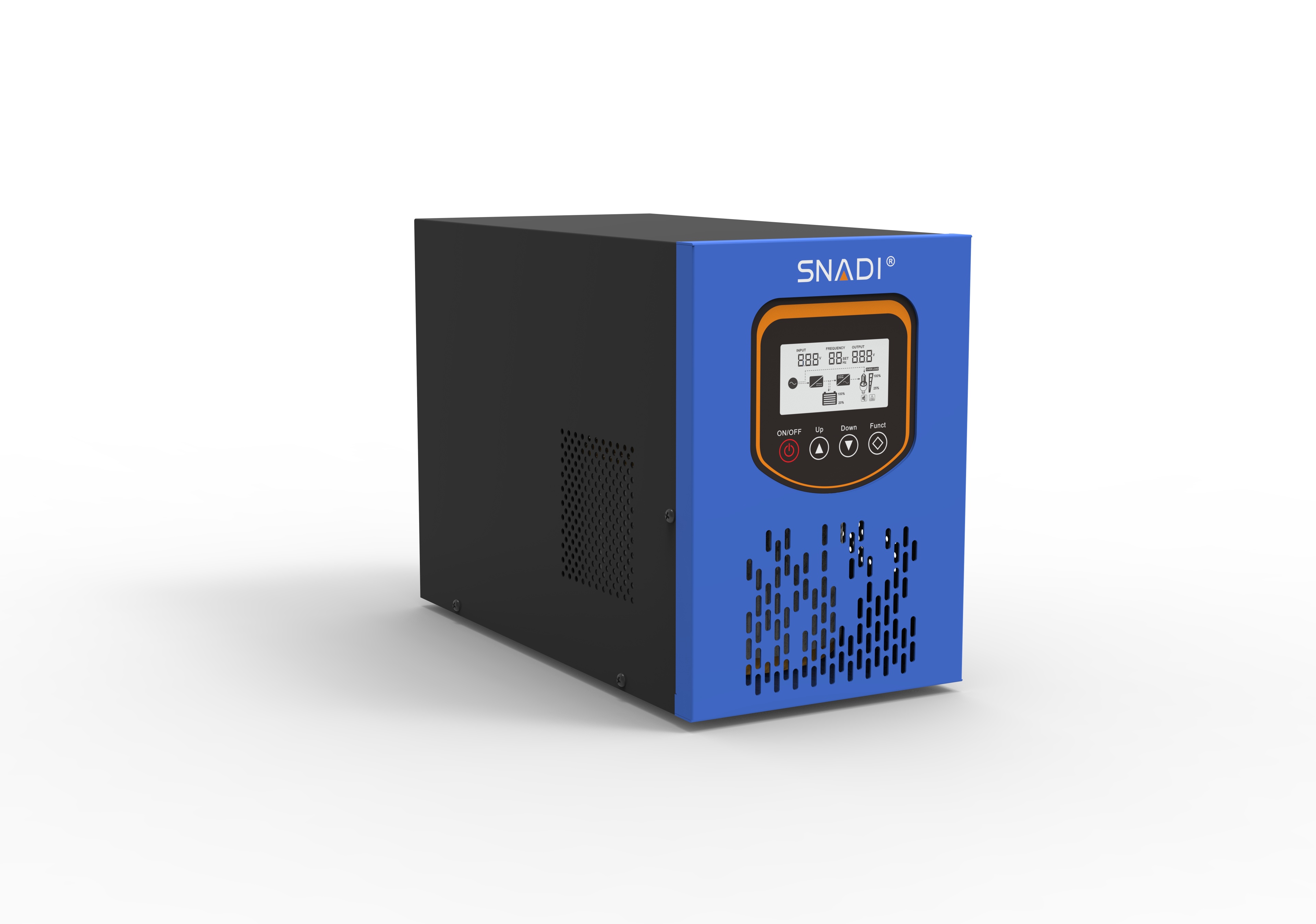

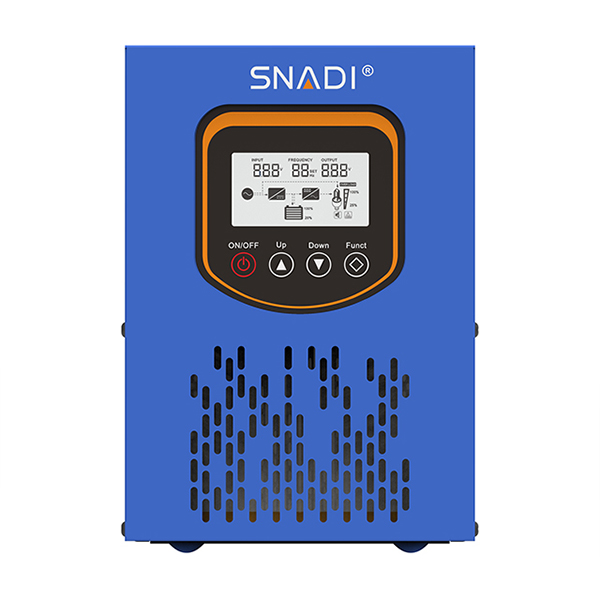

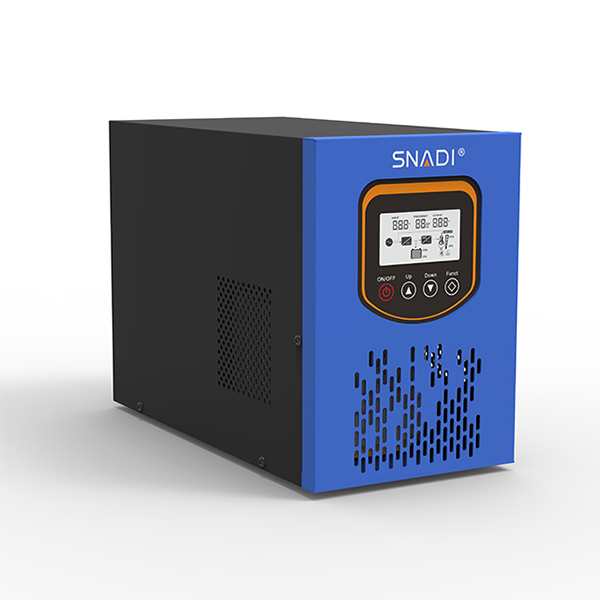

SNADI FTB Solar Inverter
SNADI FTB Solar Inverter provides clean and stable power with minimalharmonic distortion. Its built-in charger and user-friendly design make it an ideal choice foroff-grid and backup power systems.
●Pure sine wave
●Lithium battery activation function Utility
●Compatible work with LiFePO4 battery via RS485
●Pure Sine Wave - Power factor 1.0
●LCD real-time display of the device parameters, running state at a glance
●Detachable dust cover for harsh environment
●Low frequency(Built in ring transformer)
●Support multiple output priority: SBU, SUB

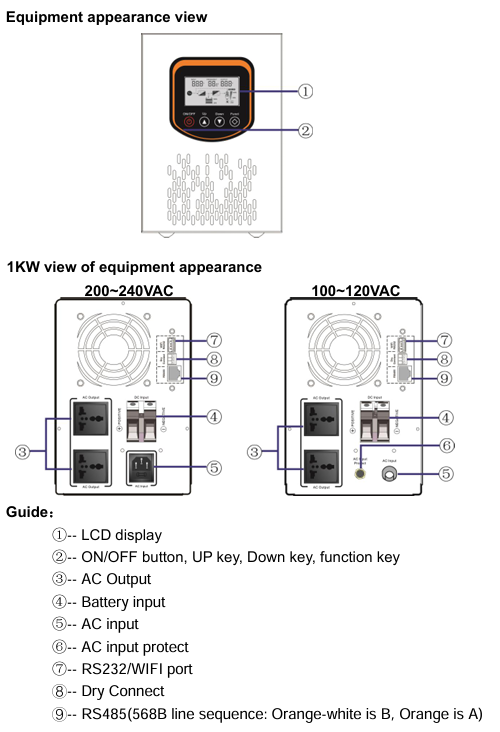

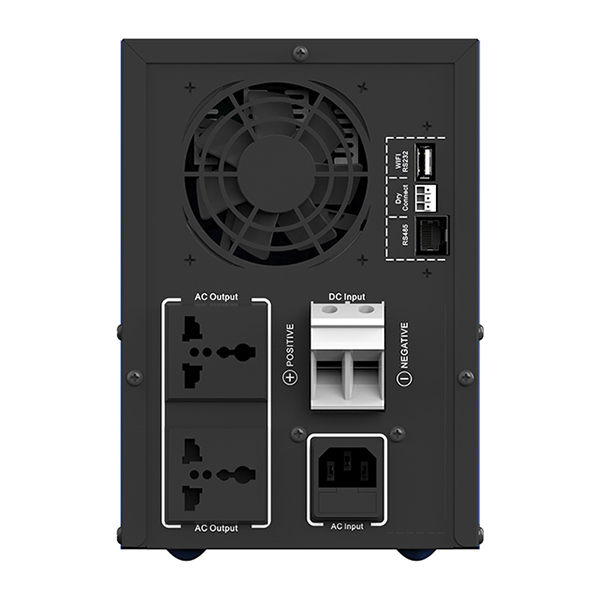

●Communication interface: RS232/RS485/Dry contact
●EQ function to optimize battery performance and extend lifecycle
Customized production that meets your needs
Model：0.5KW、1KW、1.5KW、2KW、 3KW、4KW、5KW、6KW
SNADI FTB Solar Inverter provides clean and stable power with minimalharmonic distortion. Its built-in charger and user-friendly design make it an ideal choice foroff-grid and backup power systems.
MAIN FEATURES
◆Pure sine wave
◆Lithium battery activation function Utility
◆Compatible work with LiFePO4 battery via RS485
◆Pure Sine Wave - Power factor 1.0
◆LCD real-time display of the device parameters, running state at a glance
◆Detachable dust cover for harsh environment
◆Low frequency(Built in ring transformer)
◆Support multiple output priority: SBU, SUB
◆Communication interface: RS232/RS485/Dry contact
◆EQ function to optimize battery performance and extend lifecycle
|
Model |
0.5KW |
1KW |
1.5KW |
2KW |
3KW |
4KW |
5KW |
6KW |
|
|
Rated Power |
500W |
1000W |
1500W |
2000W |
3000W |
4000W |
5000W |
6000W |
|
|
Battery |
Rated Voltage |
12/24VDC |
12/24/48VDC |
24/48VDC |
48VDC |
||||
|
Input |
Voltage Range |
75~138/145~275VAC |
|||||||
|
Frequency |
45~65Hz |
||||||||
|
Output |
Voltage Range |
100/220VAC±5%(Inversion mode) |
|||||||
|
Frequency |
50/60Hz±1%(Inversion mode) |
||||||||
|
Output Wave |
Pure Sine Wave |
||||||||
|
Conversion Time |
＜10ms(Typical load) |
||||||||
|
Efficieny |
＞85%（80% resistive load） |
||||||||
|
Overload |
110~120%60s;120~130/10s 130~150%/2s;＞150%/500ms |
||||||||
|
Protection Function |
Battery overvoltage protection, battery undervotage protection, overload, protection, short circuit protection, overtemperature protection, etc. |
||||||||
|
Ambient Temperature For Operation |
0~40℃ |
||||||||
|
Ambient Temperature For |
-15~50℃ |
||||||||
|
Operation/Storage Ambient |
0~90% No Condensation |
||||||||
|
Product Size:L*W*H(mm) |
302*122*188 |
316*149*215 |
432*210*330 |
551*215*344 |
|||||
|
Package Size:L*W*H(mm) |
375*195*260 |
410*215*280 |
498*305*402 |
622*315*416 |
|||||
|
Net Weight(KG) |
5.8 |
8.2 |
16 |
18.5 |
20.7 |
25 |
32 |
32 |
|
|
Gross Weight(KG) |
7 |
9 |
23 |
25.5 |
27.5 |
37 |
42 |
35 |
|
