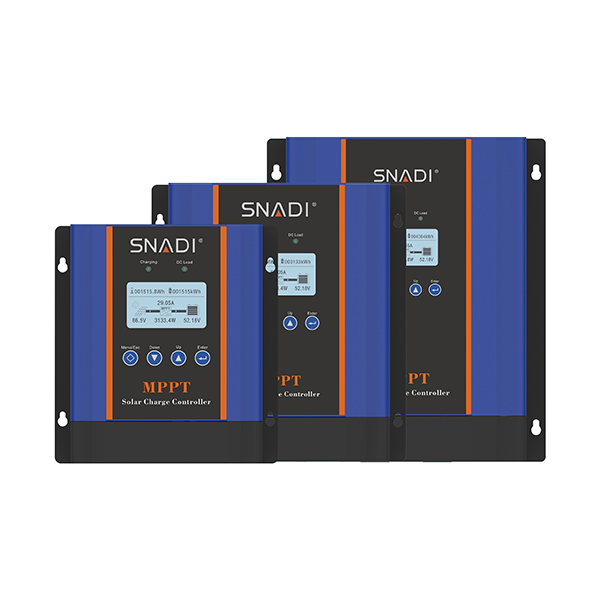

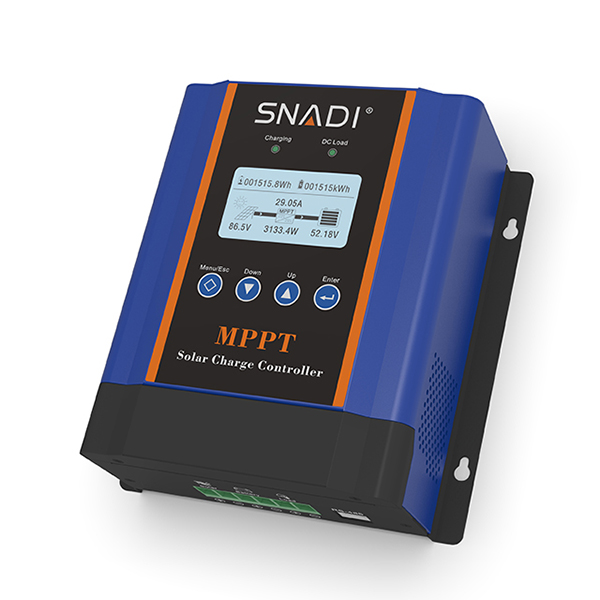

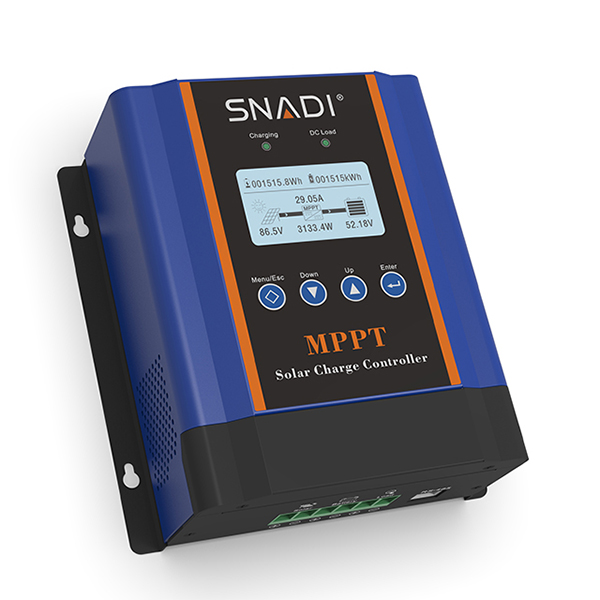

CM-MPPT Solar Charge Controller advanced MPPT technology with up to 97% efficiency. Auto voltage detection (12V/24V/48V) and customizable charge/discharge settings. Supports lead-acid and lithium batteries. Features intelligent cooling, full protection, and RS485 communication for remote monitoring.

●Excellent heat dissipation design and intelligent controlled cooling fan

●12VDC/24VDC/48VDC automatic identification

●Charging voltage and discharge voltage can be set according to different requirements

●Innovative maximum power point tracking technology,the conversion rate of up to 97%

●Quick scan of the entire l-V curve.Efficient track the maximum power point

●Three types of lead-acid battery,sealed,colloid,open type battery and lithiumbattery series charging procedures are optional

●With the functions of over charge,over discharge,overload and short circuitautomatic protection

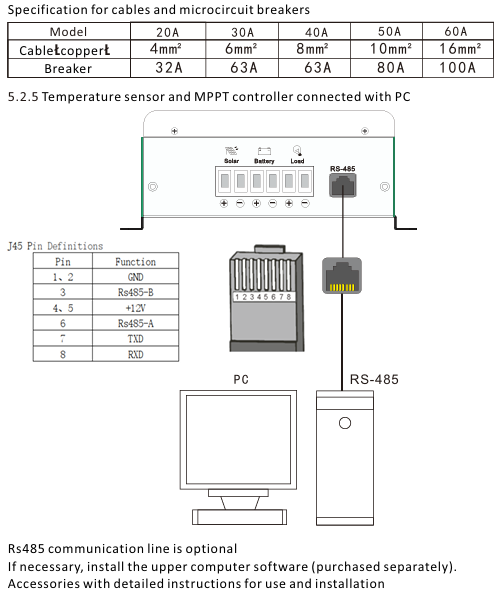

●With RS485 communicate interface.lt can communicate with multiple and the uppercomputers,which is convenient to check the operating parameters of the controller

Customized production that meets your needs

Model：30A、 40A、50A、60A、80A、100A
