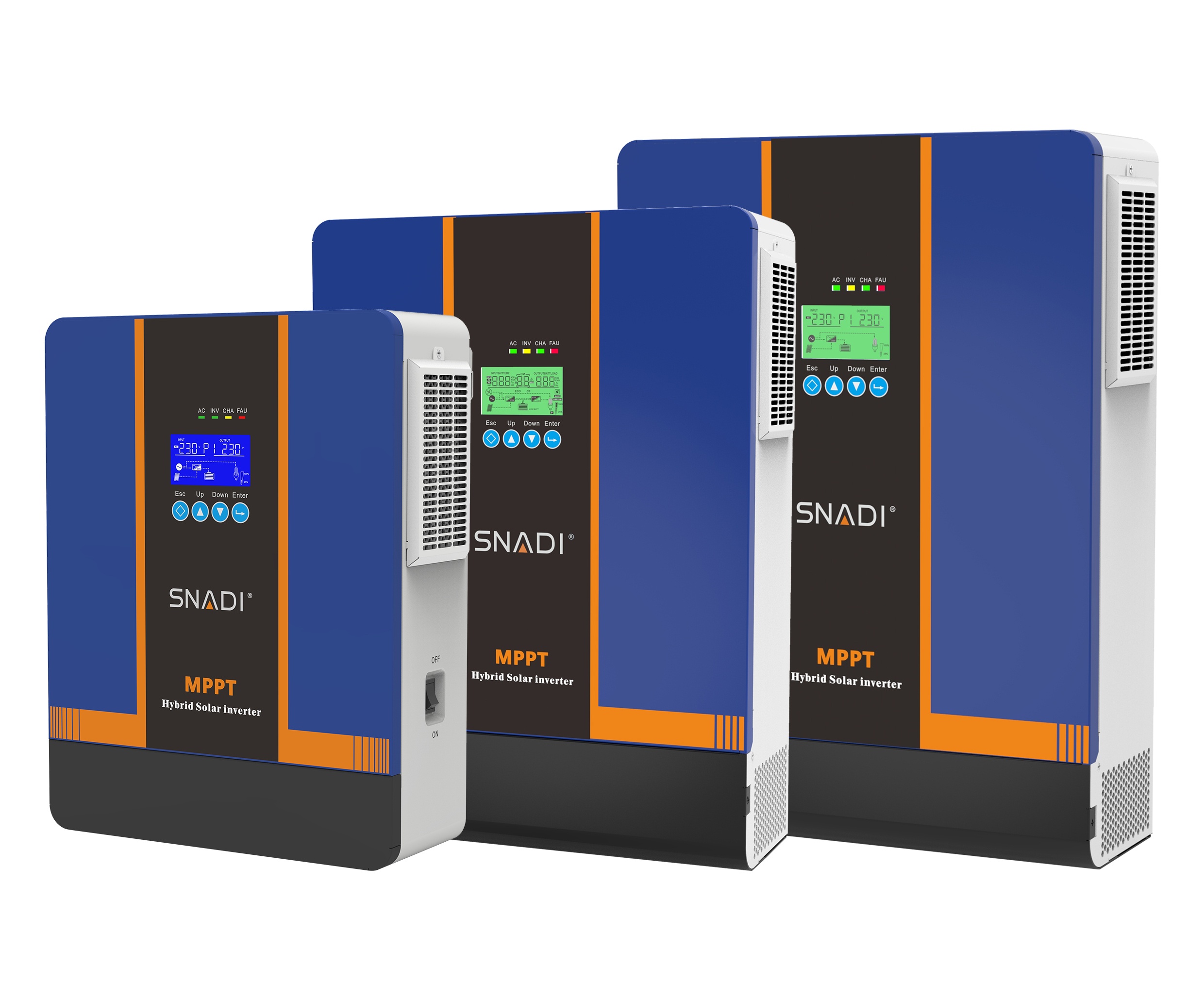

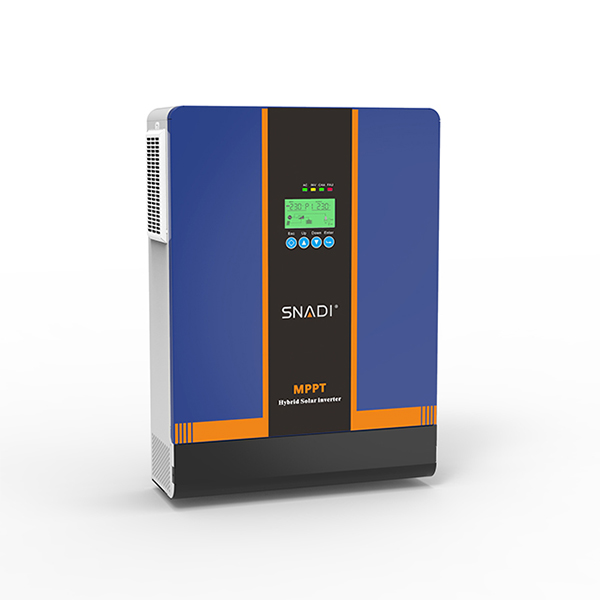

SNADI NKH MPPT High Frequency Hybrid Solar Inverter
SNADI's high frequency MPPT hybrid solar inverter is a powerful and efficient solution for residential and commercial solar energy systems. Hybrid solar inverter is the perfect choice for reliable and sustainable energy solutions.
●Built-in 1or 2 MPPT
●Lithum battery activation function by PV or Utility
●Compatible work with LiFePO4 battery via RS485
●Pure Sine Wave
●USB/RS485(/WiFi/GPRS)/Dry node control
●PV Input 125/450/500VDC Max
●Small size, light weight, low freight, suitable for Air Frieght
●Capable to work without battery
●Wifi remote monitoring potional
●Support multiple output priority: UTL, SOL, SBU, SUB
●EQ function to optimize battery performance and extend lifecycle
Customized production that meets your needs
Model：1.2KW、3.6KW、5KW、6KW、8.5KW、11KW
SNADI's high frequency MPPT hybrid solar inverter is a powerful and efficient solution for residential and commercial solar energy systems. Hybrid solar inverter is the perfect choice for reliable and sustainable energy solutions.
MAIN FEATURES：
◆Built-in 1or 2 MPPT
◆Lithum battery activation function by PV or Utility
◆Compatible work with LiFePO4 battery via RS485
◆Pure Sine Wave
◆USB/RS485(/WiFi/GPRS)/Dry node control
◆PV Input 125/450/500VDC Max
◆Small size, light weight, low freight, suitable for Air Frieght
◆Capable to work without battery
◆Wifi remote monitoring potional
◆Support multiple output priority: UTL, SOL, SBU, SUB
◆EQ function to optimize battery performance and extend lifecycle
| Model | NKH-1200 | NKH-3600 | NKH-5000 | NKH-6000 | NKH-8500 | NKH-11K | ||
| Rated Power | 1200W | 3600W | 5000W | 6000W | 8500W | 11000W | ||
| Parallel Mode (function reserved) |
Allow Quantity | 0 | 1~6 | |||||
| Input | Voltage | 230/240VAC | ||||||
| Selectable Voltage Range | UPS | 170~264VAC 90~280VAC |
170~280VAC 120~280VAC |
170~280VAC 90~280VAC |
||||
| INV | ||||||||
| Frequency Range | 50/60Hz(Auto sensing) | |||||||
| Output | AC Voltage Regulation (Batt.Mode) | 208/220/230/240VAC | 220/230VAC | |||||
| Surge Power | 2.4KW | 7.2KW | 10KW | 12KW | 17KW | 22KW | ||
| Efficiency(Peak)PV to INV | 95% | |||||||
| Efficiency(Peak)Battery to INV | 94% | |||||||
| Transfer Time | 10ms | |||||||
| Overlord Capacity | 1min@102%~110% Load,10s@110%~130% Load,3s@130%~150% Load, 2s@150% Load | |||||||
| Battery & AC charge | Battery Voltage | 12VDC | 24VDC | 48VDC | ||||
| Floating Charge Voltage | 13.5VDC | 27VDC | 54VDC | |||||
| Overchange Protection | 15.75VDC | 32VDC | 64VDC | |||||
| Maximum Charge Current | 60A | 100A | 80A | 120A | ||||
| PV Charge | Maximum PV Array Power | 1000W | 5000W | 5500W | 9000W | 5000W*2 | ||
| MPPT Range Operating Voltage | 20~100VDC | 40~430VDC | 120~430VDC | 60~450VDC | 60~500VDC | |||
| Maximum PV Array Open Circuit Voltage | 125VDC | 450VDC | 500VDC | |||||
| Maximum Charge Current | 60A | 100A | 80A | 120A | 140A | 160A | ||
| Maximum Efficiency | 99% | |||||||
| AC＋PV Charge | Maximum Charge Current | 120A | 100A | 80A | 120A | 140A | 160A | |
| Opera Ting Environment | Humidity | 5~95% Relative Humidity(Non-condensing) | ||||||
| Operating Temperature | 0~55℃ | |||||||
| Storage Temperature | -15~60℃ | |||||||
| Physical | Communication Interface | USB/RS232/RS485 | ||||||
| Dimensions: D*W*H(mm) | 342*260*103 | 439*320*128 | 427*343*122 | 540*403*122 | ||||
| Package Size (D*W*H)mm | 435*355*198 | 535*415*215 | 495*425*195 | 637*495*214 | ||||
| Net Weight(KG) | 4.1 | 9 | 9.2 | 14.5 | 15.5 | |||
| Note: Our company has the right of changing this user manual without any information | ||||||||
