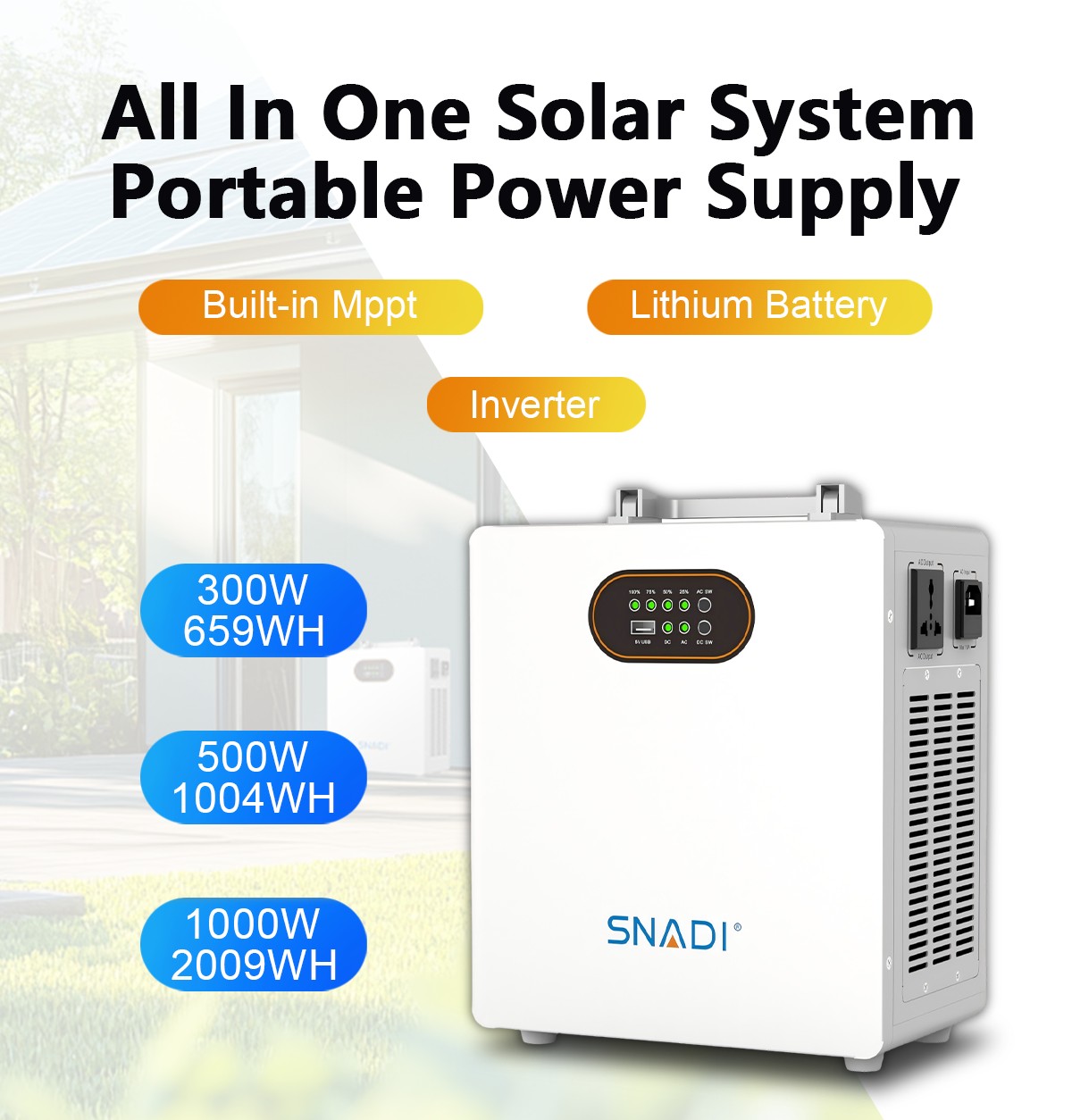

MS Series Portable Energy Storage Power Supply
MS Series Portable Power Station delivers reliable, clean energy for demanding applications. It features high-efficiency MPPT technology for rapid solar charging, pure sine wave AC output (<3% THD) for sensitive electronics, and a long-life LiFePO4 battery system. Engineered with comprehensive circuit protection and intelligent cooling, it provides a professional-grade power solution for outdoor and emergency use.
● Wide input range for communication, pure sine wave output
● High charging/discharging energy efficiency and long cycle lifeof lithium batteries
● Intelligent air-cooled energy-saving design

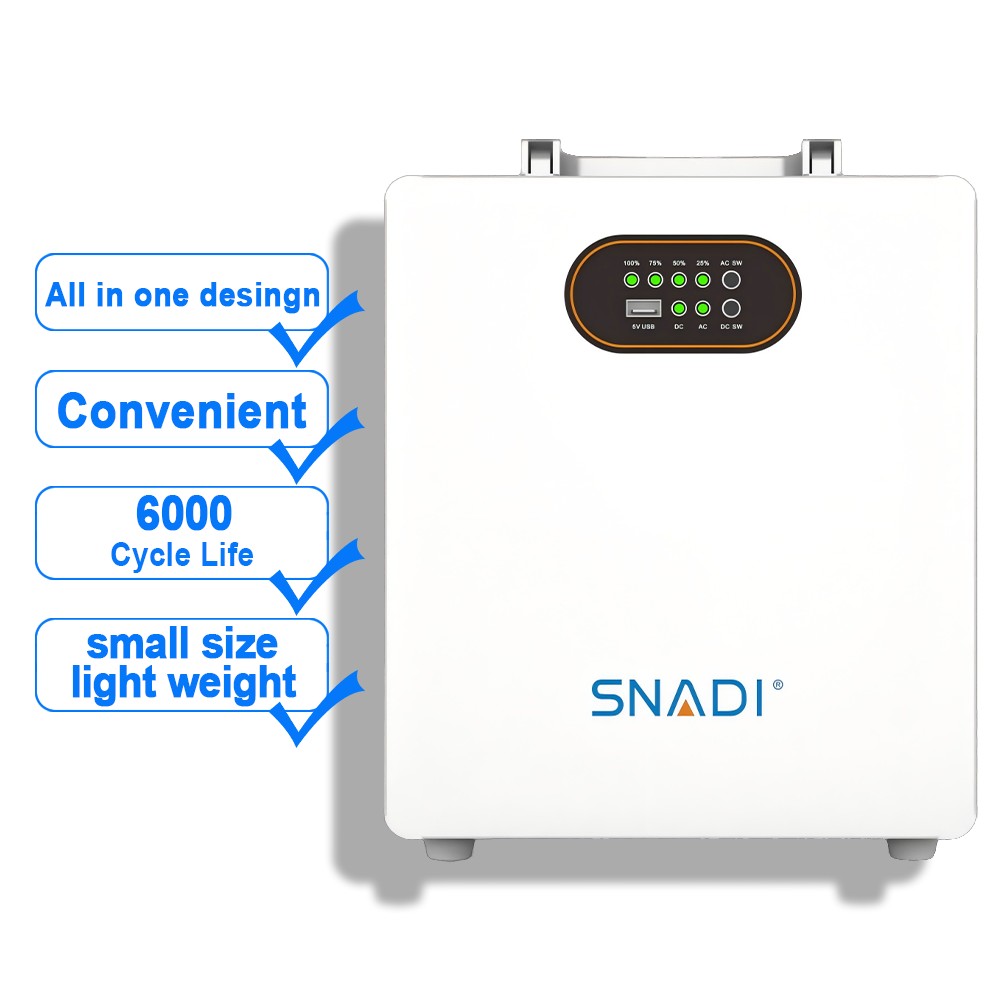

● The panel display is simple and easy to operate
● Complete protection functions for overcurrent, overvoltage, overtemperature, short circuit, etc
● High energy density, small size/light weight
| Model | MS-30132-HV | MS-50132-HV | MS-10264-HV | MS-50132-LV | MS-10264-LV | |
| AC Input | Rated Voltage | 230VAC | 120VAC | |||
| Voltage Range | 90-280VAC | 60-145VAC | ||||
| Frequency Range | 45-65Hz | |||||
| Power Factor | >0.95 | |||||
| AC Output | Rated Power | 300W | 500W | 1000W | 500W | 1000W |
| Voltage Range | 230VAC±5V | 120VAC±5V | ||||
| Frequency Range | 50Hz±0.5% | 60Hz±0.5% | ||||
| Power Factor | ≥99% | |||||
| Overload Capacity | CP300W,<170VAC shutdown | CP500W,<170VAC shutdown | CP1000W,<170VAC shutdown | CP500W,<85VAC shutdown | CP1000W,<85VAC shutdown | |
| Voltage Waveform | pure sine wave | |||||
| Harmonic Distortion(THD) |
<3%@linear load <5% non-linear load |
|||||
| Convert Time | ≤20ms | |||||
| USB Output | 5V/1A | |||||
| PV Input | Voltage Range | 11-55VDC | ||||
| Rated Power | 300W(Max) | 550W(Max) | 300W(Max) | 550W(Max) | ||
| Maximum Current | 10A(Max) | 15A(Max) | 10A(Max) | 15A(Max) | ||
| Maximum Charging Current | 80A(MAX) | 100A(MAX) | 80A(MAX) | 100A(MAX) | ||
| Battery Characteristics | Battery Type/Rated Voltage | Lithium iron battery/3.2V-206AH | Lithium iron battery/3.2V-314AH | Lithium iron battery/6.4V-314AH | Lithium iron battery/3.2V-314AH | Lithium iron battery/6.4V-314AH |
| Voltage Range | 3.0-3.65VDC | 6.0-7.3VDC | 3.0-3.65VDC | 6.0-7.3VDC | ||
| Maximum Charging Power | 300W | 500W | 1000W | 400W | 1000W | |
| AC+PV Maximum Charging Current | 1-100A(configurable) | 1-140A(configurable) | 1-160A(configurable) | 1-140A(configurable) | 1-160A(configurable) | |
| Other | Communication And Monitoring | USB(serial interface) | ||||
| Working Temperature Range | -10-40℃ | |||||
| Storage Temperature Range | -15-60℃ | |||||
| Humidity Range | 5-95%(no condensation) | |||||
| Noise | ≤50dB | |||||
| Working Altitude |
Applicable for ≤3000m 10% reduction for every 1000m increase(over 3000m) |
|||||
| Product Dimensions(length*width*height)mm | 255*135*315 | 285*230*315 | 355*135*315 | 285*230*315 | ||
| Packaging Dimensions(length*width*height)mm | 345*230*360 | 345*250*360 | 375*325*360 | 345*250*360 | 375*325*360 | |
