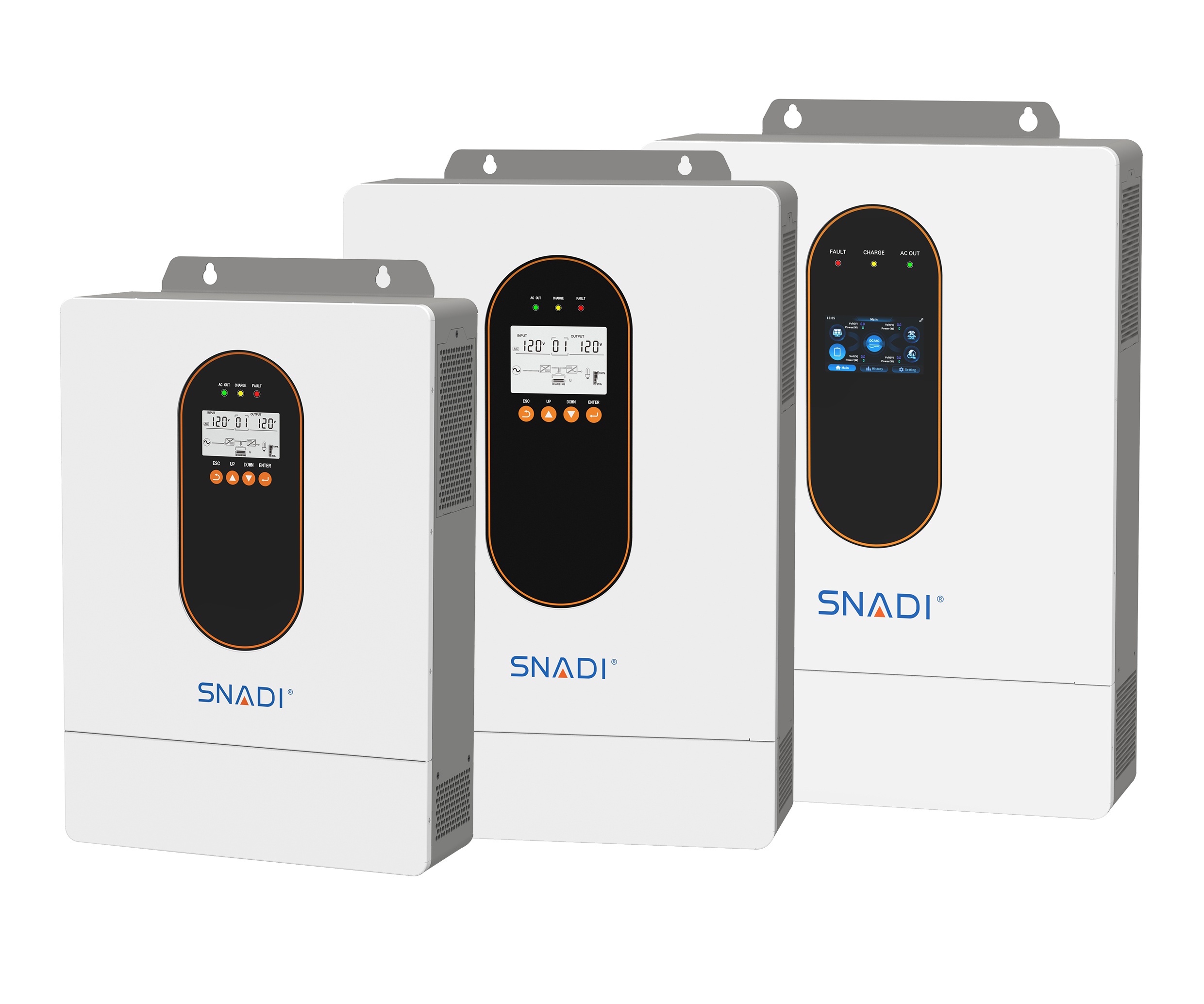

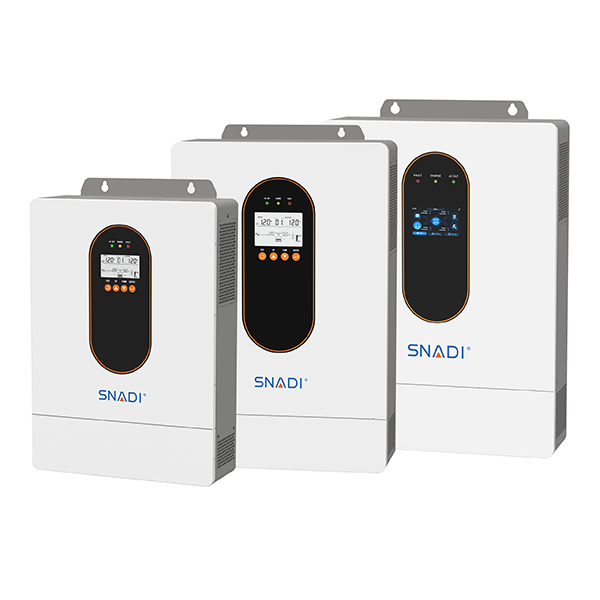

SNADI AS Split Hybrid Solar Inverter

AS Split Hybrid Solar Inverter supports 1 or 2 MPPTs, with lithium battery activation via PV or utility. It is compatible with LiFePO4 batteries and provides pure sine wave output at 120V/240V. It supports 0–6 units in parallel, up to 500VDC PV input, and can operate off-grid or grid-tied. It works without batteries, features a detachable dust cover for harsh environments, and offers optional WiFi remote monitoring.



●Built-in 1 or 2 MPPT
●Lithium battery activation function by PV or Utility

●Compatible work with LiFePO4 battery via RS485

●Pure Sine Wave 120VAC(120/240VAC)

●Can parallel 0-6units
●PV Input 300/500VDC Max
●Can operate independently off the grid or in parallel with the grid

●Capable to work without battery

●Detachable dust cover for harsh environment

●Wifi remote monitoring optional

Customized production that meets your need



Model:3.6KW、6.5KW、12KW



AS Split Hybrid Solar Inverter supports 1 or 2 MPPTs, with lithium battery activation via PV or utility. It is compatible with LiFePO4 batteries and provides pure sine wave output at 120V/240V. It supports 0–6 units in parallel, up to 500VDC PV input, and can operate off-grid or grid-tied. It works without batteries, features a detachable dust cover for harsh environments, and offers optional WiFi remote monitoring.



◆Built-in 1 or 2 MPPT
◆Lithium battery activation function by PV or Utility

◆Compatible work with LiFePO4 battery via RS485

◆Pure Sine Wave 120VAC(120/240VAC)

◆Can parallel 0-6units
◆PV Input 300/500VDC Max
◆Can operate independently off the grid or in parallel with the grid

◆Capable to work without battery

◆Detachable dust cover for harsh environment

◆Wifi remote monitoring optional



Model AS362048-M80-A AS362048-M80-B AS602048-M150-A AS602048-M150-B AS123048-M200-A AS123048-M200-B
Parallel Mode
(function reserved)
Allowed Quantity -A None/-B 1~6
Mains Mode Nominal Input Voltage 120VAC±5% 120(L1/N)/240VAC(L1/L2)
Input Voltage Range (90~140VAC)±2% (85~140VAC)±2%
Frequency 50/60Hz(Auto detect)
Frequency Range 47±0.3Hz~55±0.3(50Hz);57±0.3Hz~65±0.3Hz(60Hz)
Max.Efficiency >95%
Conversion Time (bypass and inverter) 10ms(Typical value)
Max.Bypass Overload Current 40A 60A 2P,63A/63A(L1/L2)
Inverter Mode Output Voltage Waveform Pure Sine Wave
Nominal Output Power 3600VA/3600W 6500VA/6500W Split phase:1200VA/12000W
Single phase:7200VA/7200W(limited by the wiring terminals)
Power Factor 1
Nominal Output Voltage 120VAC±5% 120VAC(L1/N,L2/N)/240VAC(L1/L2)
Output Frequency Range 50±0.3Hz/60±0.3Hz
Max.Efficiency >91%
Overload Protection (102%<load<125%)±10%:report error,turn off the output after 5 minutes
(125%<load<150%)±10%:report error,turn off the output after 10 seconds
load>150%±10%:report error,turn off the output after 5 seconds
(102%<load<110%)±5%:report error,turn off the output after 5 minutes
(110%<load<125%)±5%:report error,turn off the output after 10 seconds
load>125%±5%:report error,turn off the output after 5 seconds
Peak Power 7200VA 12000VA Split phase:18000VA Single phase:18000VA
Load Moter Capability 2HP 5HP 6HP
Nominal Battery Input Voltage 48V(Min. starting voltage 44V) 51.2V(Min. starting voltage 44V)
Battery Voltage Range 40.0~60VDC±0.6VDC(Undervoltage alarm/shutdown voltage/overvoltage/alarm/overvolatge recovery...LCD screen(can be set) 40.0~58.6VDC±0.6VDC(Undervoltage alarm/shutdown voltage/overvoltage/alarm/overvolatge recovery...settable on LCD screen)
Save Power Mode Loads 25W
Mains Charge Battery Type Lead-acid or lithium batteries
Max.Charge Current (configurable) 40A 120A 160A
Charge Voltage Range 40~60VDC 40~58.6VDC
Solar Charge Max.PV Open Circuit Voltage 300VDC 500VDC
PV Operate Voltage Range 80~300VDC 90~500VDC
MPPT Voltage Range 90~260VDC 90~450VDC
Battery Voltage Range 40~60VDC 40~58.6VDC
Max.PV Input Power/Current 4000W/22A 4500W*2/22A*2 6000W*2/22A*2
Charge Current Range (configurable) 0~80A 0~150A 0~200A
Max.Hybrid Charge Current (PV+AC) Max.Hybrid Charge Current (configurable) 0~80A 0~150A 0~200A
Certification Safety Certification CE(IEC62109-1.2) UL STD.1741
EMC Certification Level EN61000,C2 FCC part15,CLASS B
Operate Temperature Range -15~55℃ -10~55℃(>45℃ derating)
Storage Temperature Range -25~60℃
Humidity Range 5~95%(Three anti-paint protecting)
Noise ≤60dB
Cooling Forced air cooling,adjustable wind speed

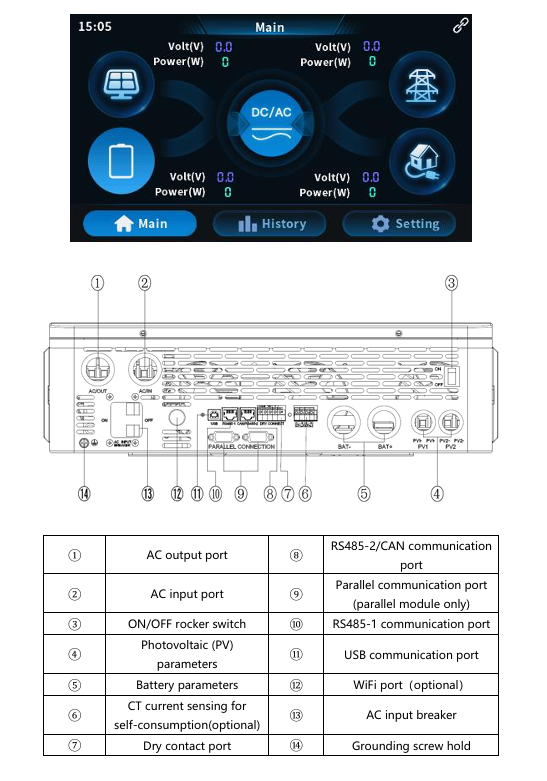

Communicate USB/RS485 (WiFi/GPRS)/Dry node control
