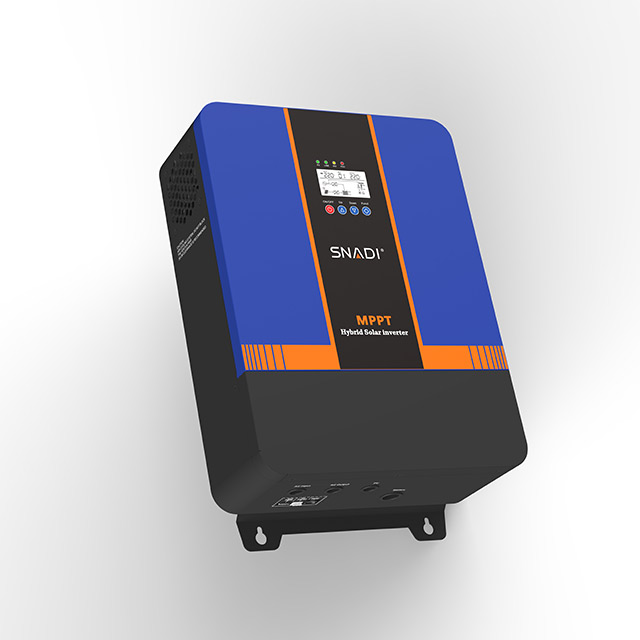

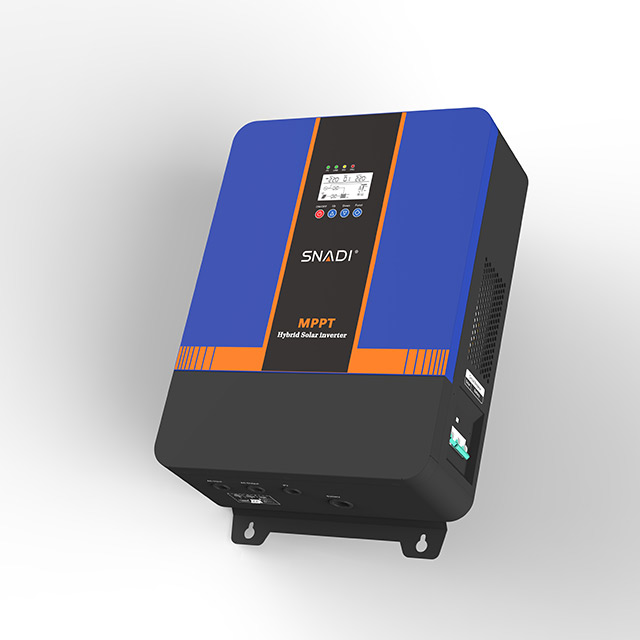

SNADI NKM MPPT Solar Inverter(Split Phaes)
SNADI's MPPT hybrid solar inverter is a high-performance and reliable solution for residential and commercial solar energy systems. With advanced maximum power point tracking (MPPT) technology.
MAIN FEATURES
●Pure sine wave 110/220VAC
●Built-in MPPT 100A PV Input 150VDC
●Lithium battery activation function by PV or Utility
●Compatible work with LiFePO4 battery via RS485
●Pure Sine Wave-Power factor 1.0

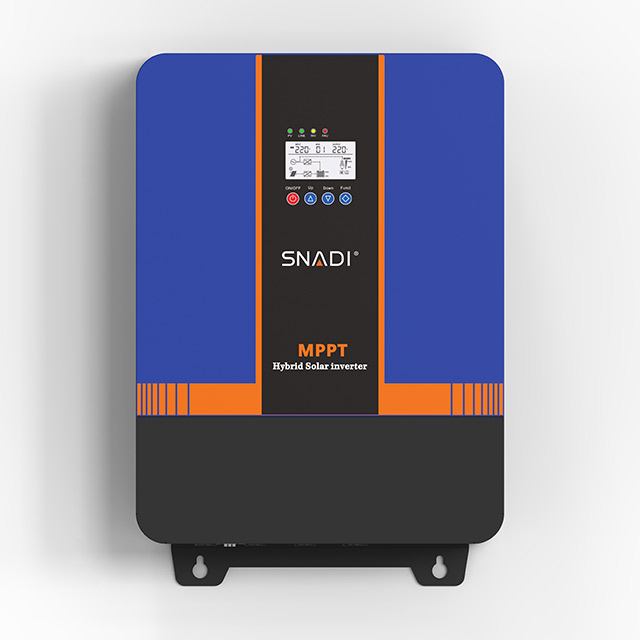

●LCD real-time display of the device parameters, running state at a glance
●Detachable dust cover for harsh environment
●Low frequency(Built in ring transformer)
●Support multiple output priority: SBU,SUB

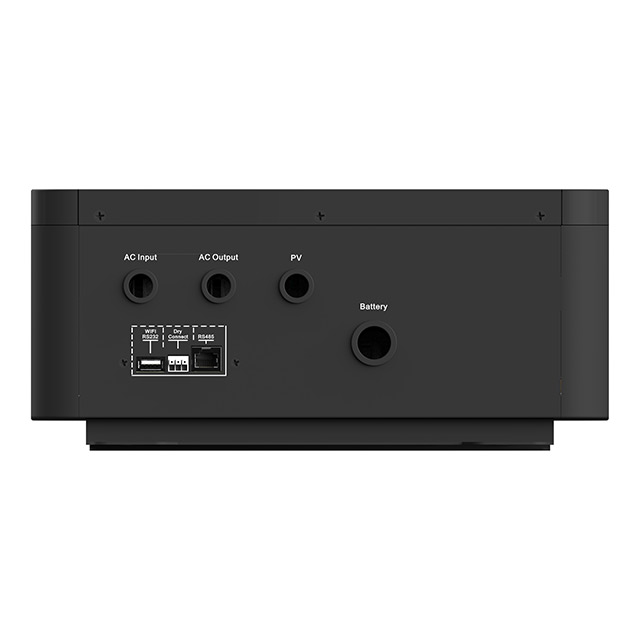

●Communication interface:RS232/RS485/Dry contact
●EQ function to optimize battery performance and extend lifecycle
Customized production that meets your needs
SNADI's MPPT hybrid solar inverter is a high-performance and reliable solution for residential and commercial solar energy systems. With advanced maximum power point tracking (MPPT) technology.
MAIN FEATURES
●Pure sine wave 110/220VAC
●Built-in MPPT 100A PV Input 150VDC
●Lithium battery activation function by PV or Utility
●Compatible work with LiFePO4 battery via RS485
●Pure Sine Wave-Power factor 1.0
●LCD real-time display of the device parameters, running state at a glance
●Detachable dust cover for harsh environment
●Low frequency(Built in ring transformer)
●Support multiple output priority: SBU,SUB
●Communication interface:RS232/RS485/Dry contact
●EQ function to optimize battery performance and extend lifecycle
| Model | NKMS-2KW | NKMS-3KW | NKMS-4KW | NKMS-5KW | NKMS-6KW | |
| Power Rating | 2000W | 3000W | 4000W | 5000W | 6000W | |
| Battery | Rated Voltage | 12/24/48VDC | 24/48VDC | |||
| AC Charge Current | 30A MAX(Can be set) | |||||
| Input | Voltage Range | 170-275VAC(HOT1-HOT2) | ||||
| Frequency | 45~65Hz | |||||
| Output | Voltage/Power | HOT1-HOT2: 240VAC/2KW; N-HOT1: 120VAC/1KW; N-HOT2: 120VAC/1KW |
HOT1-HOT2: 240VAC/3KW; N-HOT1: 120VAC/1.5KW; N-HOT2: 120VAC/1.5KW |
HOT1-HOT2: 240VAC/4KW; N-HOT1: 120VAC/2KW; N-HOT2: 120VAC/2KW |
HOT1-HOT2: 240VAC/5KW; N-HOT1: 120VAC/2.5KW; N-HOT2: 120VAC/2.5KW |
HOT1-HOT2: 240VAC/6KW; N-HOT1: 120VAC/3KW; N-HOT2: 120VAC/3KW |
| Frequency | 50/60Hz±1%/(inverter mode) | |||||
| Output Wave | Pure Sine Wave | |||||
| Conversion Time | <10ms(Typical load) | |||||
| Efficiency | >85%(80% Resistive load ) | |||||
| Overload | 110~120%/60s;120~130%/10s;130~150%/2s;>150%/500ms | |||||
| Protection Function | Battery over-voltage and low-voltage protection,overload protection,short circuit protection,over-temperature protection | |||||
| Solar Controller | MPPT Voltage Range | 12VDC:18~150VDC;24VDC:34~150VDC;48VDC:65~150VDC | ||||
| PV Power | 12VDC/30A:420W 24VDC/30A:340W 48VDC/30A:1650W |
24VDC/60A:1700W 48VDC/60A:3400W |
||||
| Rated Charge Current | 30A(Max) | 60A(Max) | ||||
| MPPT Efficiency | ≥99% | |||||
| Average Charging Voltage (lead acid battery) |
14.2VDC*A(Battery segment) | |||||
| Floating Charge Voltage | 13.75VDC*A(Battery segment) | |||||
| Operating Ambient Temperature | -15~50°C | |||||
| Storage Ambient Temperature | -20~50°C | |||||
| Operating/storage Environment | 0~90% No Condensation | |||||
| Dimensions:W*D*H(mm) | 520*420*222 | |||||
| Packing Size:W*D*H(mm) | 635*535*252 | |||||
