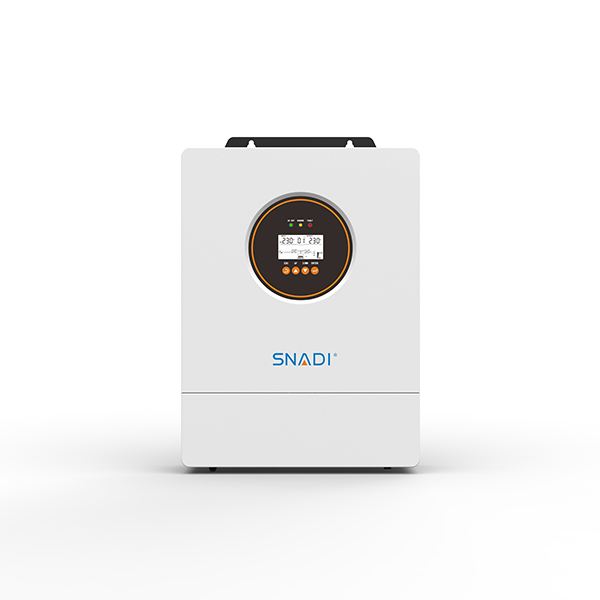

SNADI ES On/Off Grid Solar Inverter
ES Hybrid Solar Inverter features built-in 1/2 MPPT, supports LiFePO4 batteries via RS485, and offers pure sine wave output. It can run off-grid or grid-tied, supports 0–6 units in parallel, and works without a battery. With 500VDC PV input, detachable dust cover, and optional WiFi monitoring, it suits harsh environments.
●Built-in 1 or 2 MPPT
●Lithium battery activation function by PV or Utility
●Compatible work with LiFePO4 battery via RS485
●Pure Sine Wave
●Can parallel 0-6units
●PV Input 500VDC Max
●Can operate independently off the grid or in parallel with the grid
●Capable to work without battery
●Detachable dust cover for harsh environment
●Wifi remote monitoring optional
ES Hybrid Solar Inverter features built-in 1/2 MPPT, supports LiFePO4 batteries via RS485, and offers pure sine wave output. It can run off-grid or grid-tied, supports 0–6 units in parallel, and works without a battery. With 500VDC PV input, detachable dust cover, and optional WiFi monitoring, it suits harsh environments.
●Built-in 1 or 2 MPPT
●Lithium battery activation function by PV or Utility
●Compatible work with LiFePO4 battery via RS485
●Pure Sine Wave
●Can parallel 0-6units
●PV Input 500VDC Max
●Can operate independently off the grid or in parallel with the grid
●Capable to work without battery
●Detachable dust cover for harsh environment
●Wifi remote monitoring optional
| Model | ES622048-M10-A | ES622048-M10-B | ES122048-M16-A | ES122048-M16-B | |
| Parallel Mode (function reserved) |
Allow Quantity | -A None/-B 1~6 | |||
| Mains Mode | Nominal Input Voltage | 220/230VAC | |||
| Input Voltage Range | (170~280VAC)x2%UPS mode)(80~280VAC)x2%APL mode) | ||||
| Frequency | 50/60Hz(Auto detect) | ||||
| Frequency Range | 47±0.3~55±0.3Hz(50Hz)x57±0.3~65±0.3Hz(60Hz) | ||||
| Max. Efficiency | >95% | ||||
| Conversion Time (bypass and inverter) | 10ms(typical) | ||||
| Max. Bypass Overload Current | 40A | 60A | |||
| Inverter Mode | Output Voltage Waveform | Pure Sine Wave | |||
| Nominal Output Power | 6200VA/6200W | 12000VA/12000W | |||
| Power Factor | 1 | ||||
| Nominal Output Voltage | 230VAC | ||||
| Output Frequency Range | 50±0.3Hz/60±0.3Hz | ||||
| Max. Efficiency | >92% | ＞93% | |||
| Overload Protection | (102%-load<125%) ±10%:report error and turn off the output after 5 minutes (125%-load<150%) ± 10%:report error and turn off the output after 10 seconds Load=150%±10%:report error and turn off the output after 5 seconds | ||||
| Peak Power | 12000VA | 24000VA | |||
| Load Motor Capability | 4HP | 8HP | |||
| Nominal Batteryinput Voltage | 48V(Min. start voltage 44V) | ||||
| Battery Voltage Range | 40.0~60VDC±0.6VDC(Lindenvoltage alarm/shutdown voltage/overvoltage alarm/overvoltage recovery... LCD screen can be set) | ||||
| Save Power Mode | Load≤25W Enter save power mode | Load≤50W Enter save power mode | |||
| Mains Charge | Battery Type | Lead-acid or lithium batteries | |||
| Max. Charge Current (configurable) | 80A | 150A | |||
| Charge Voltage Range | 40~60VDC | ||||
| Solar Charge | Max. PV Open Circuit Voltage | 500VDC | |||
| PV Operate Voltage Range | 120~500VDC | ||||
| MPPT Voltage Range | 90~450VDC | ||||
| Battery Voltage Range | 40~60VDC | ||||
| Max.PV Input Power/Current | 6000W/22A | 6000W*2/22A*2 | |||
| Charge Current Range (configurable) | 0~100A | 0~150A | |||
| Max. Hybrid Charge Current (PV+AC) | Max. Hybrid Charge Current (PV+AC) | 0~100A | 0~150A | ||
| Certification | Safety Certification | CE(IEC62109-1,2) | |||
| EMC Certification Level | EN61000,C2 | ||||
| Operate Temperature Range | -15~55°C | ||||
| Storage Temperature Range | -25~60°C | ||||
| Humidity Range | 5~95%(Three anti-gaint protection) | ||||
| Noise | ≤60dB | ||||
| Cooling | Forced air cooling adjustable wind speed | ||||
| Communicate | USB/RS485 (WiFi/GPRS)/Dry node control | ||||
