How Does A Solar Charge Controller Work?

Sep 14 , 2023

Solar power has emerged as a forerunner in the search for sustainable and clean energy sources. Solar panels, which turn sunshine into power, are becoming more common in homes and businesses throughout the world. However, harnessing solar energy efficiently requires more than just installing solar panels. One crucial component in any solar power system is the solar charge controller. In this article, we will delve into the workings of a solar charge controller.

The Role Of Solar Charge Controllers

Solar charge controllers, also known as solar charge regulators or solar panel charge controllers, are essential components in both off-grid and grid-tied solar power systems. Their principal duty is to regulate the voltage and current generated by solar panels, ensuring that the energy is efficiently stored in batteries or used to power equipment.

How Do Solar Charge Controllers Work?

Voltage Regulation

Solar panels generate electricity from sunlight, and their output voltage varies with the amount of sunlight they receive. This voltage can vary greatly during the day. Solar charge controllers are in charge of maintaining this voltage within a safe and helpful range.

Current Control

In addition to voltage regulation, charge controllers also control the current supplied to the battery or load. They prevent overcharging the storm, which can lead to reduced battery life or even damage. When the battery reaches its maximum capacity, the charge controller lowers the current flow or disconnects the solar panel to prevent it from charging any further.

Battery Protection

Solar charge controllers offer critical battery protection features. They prevent deep discharge, which can damage batteries, by disconnecting loads when the battery voltage drops below a certain threshold. This extends the battery's life and saves costly replacements.

Load Control

Some solar charge controllers come equipped with load control capabilities. This means they can manage and distribute power to specific loads like lights, appliances, or other devices. Users may utilize this functionality to prioritize critical loads and enhance energy efficiency.

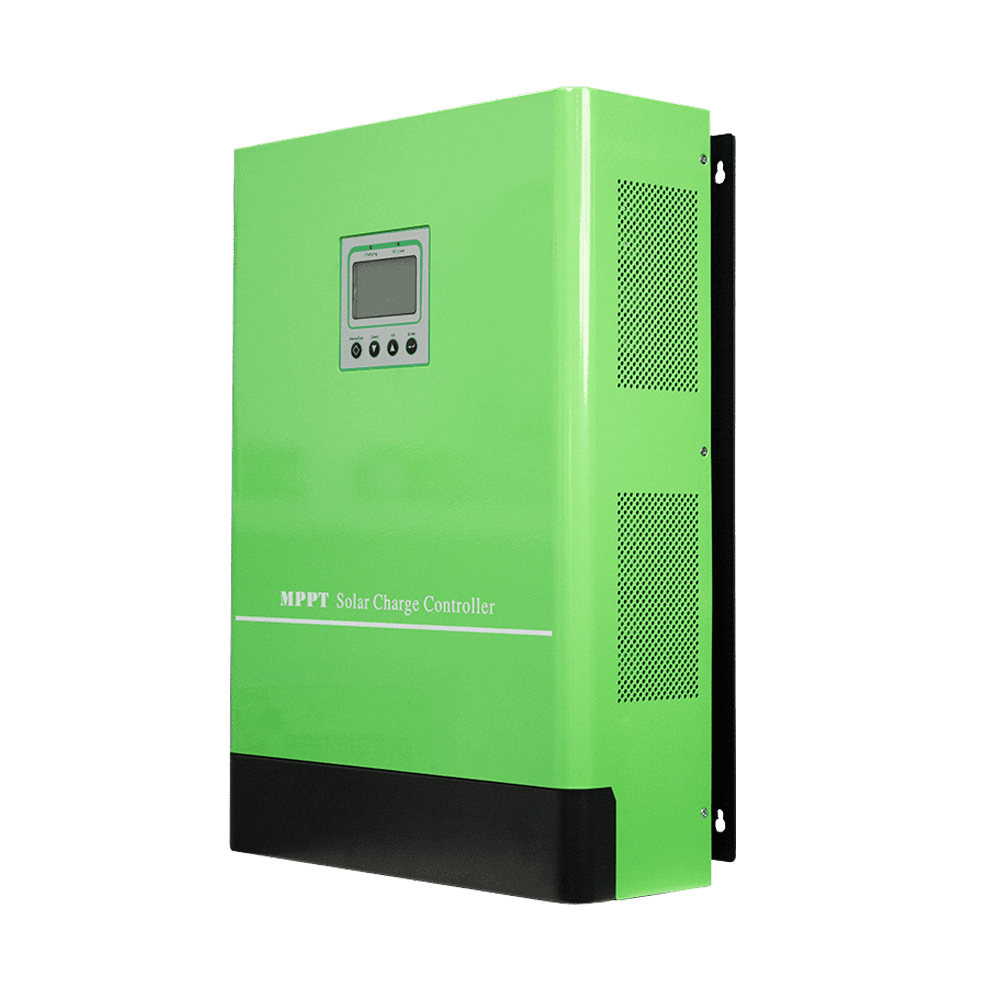

Solar Panel Charge Controller

Solar Panel Charge Controller

Benefits Of Solar Charge Controllers

Here are some benefits of solar charge controllers:

Voltage Regulation

One of the primary functions of a solar charge controller is to regulate the voltage supplied to the batteries. Solar panels produce varying voltage levels depending on the amount of sunlight they receive. During sunny days, the voltage output can be significantly higher than what the batteries can safely handle. Without a charge controller, this extra voltage might eventually destroy the batteries.

The charge controller continually monitors the voltage of the battery bank and adjusts the voltage from the solar panels to ensure that it remains within safe limits.  It accomplishes this by lowering or entirely halting the flow of power from the solar panels to the batteries as required.

Preventing Overcharging

Overcharging is a severe issue that can drastically reduce the lifespan of batteries. When batteries are subjected to excessive voltage or current for extended periods, they can become damaged, leading to reduced capacity and performance. Solar charge controllers prevent overcharging by removing solar panels from batteries after they have been fully charged.

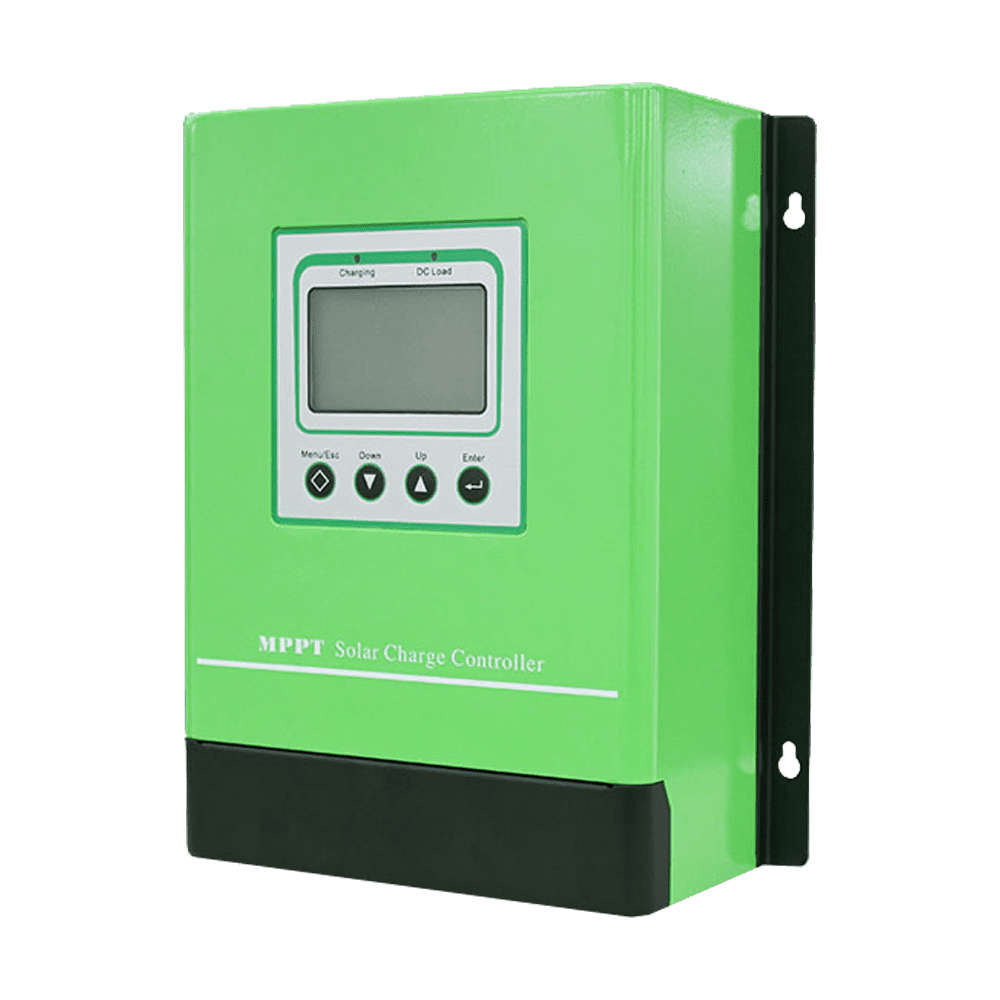

Solar Panel Charge Controller For Commercial Use

Solar Panel Charge Controller For Commercial Use

Preventing Deep Discharging

On the flip side, deep discharging of batteries is also harmful. If batteries are drained to extremely low levels, it can damage them irreversibly. When the battery voltage falls to a specified low level, solar charge controllers disconnect the load (appliances or devices) from the battery bank. This keeps the batteries from overcharging and protects their health.

Maximizing Energy Harvest

Solar charge controllers are designed to maximize the energy harvested from the solar panels. They use a technology called Maximum Power Point Tracking (MPPT) or Pulse Width Modulation (PWM) to optimize the power conversion process. MPPT controllers are more efficient because they continually detect the highest power production of the solar panels and change the voltage and current appropriately, guaranteeing that the most energy is taken from the panels.


Solar charge controllers play a crucial role in optimizing the performance of solar power systems. As a renowned solar power system equipment manufacturer, SNADI is devoted to providing various solar power system equipment. Such as solar charge controllers, solar generators, Solar Power inverters, etc. If you are interested in it, contact us today!
