Solar Power Inverter

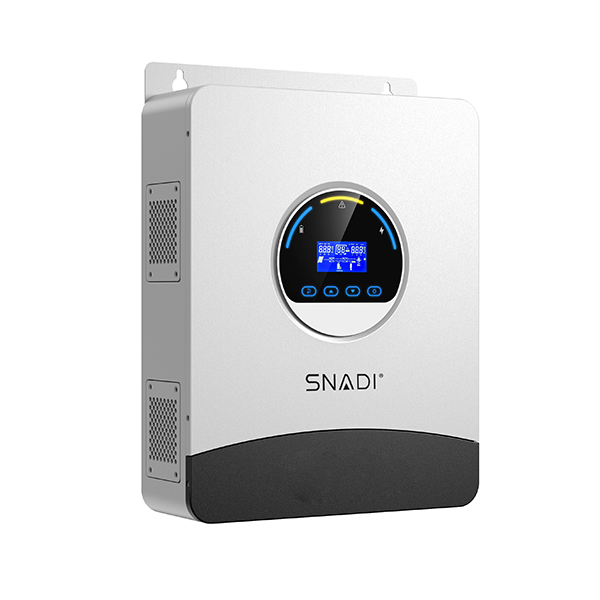

SNADI NKH Series MPPT Hybrid Solar Inverter 6KW IP54 120A
SNADI's Pure Sine Wave Inverter with Charger provides clean and stable power with minimalharmonic distortion. Its built-in charger and user-friendly design make it an ideal choice foroff-grid and backup power systems.
●Pure sine wave output for compatibility with loads of different types
●Visualization of operation status of the equipment through a digital LCD
●A wide range of input voltage, accurate output and automatic voltage stabilization
Customized production that meets your needs
Model：6KW
SNADI's Pure Sine Wave Inverter with Charger provides clean and stable power with minimalharmonic distortion. Its built-in charger and user-friendly design make it an ideal choice foroff-grid and backup power systems.
Pure sine wave solar inverter
--Output power factor 1.0
-- Wifi&GPRS available for IOS and Android
--Build in 120A MPPT Solar charger
--High PV input voltage range (75-450VDC）
--Smart battery charge design to optimize battery life
--Can meet the rich customs needs of customers
--Solar energy is provided directly to the load first .
--IP54 is suitable for use in coastal areas.
| SNEO-3K6L1 | SNEO-6KL1 | ||
| DC Input (PV) | Recommended max. PV input power | 4000W | 6000W |
| Max. input voltage | 500V | 500V | |
| Rated input voltage | 380V | 380V | |
| MPPT operating voltage range | 75V-450V | 75V-450V | |
| Number of MPPT | 1 | 1 | |
| Max. number of input strings per MPPT | 1 | 1 | |
| Max. input current per MPPT | 27A | 27A | |
| Max. short-circuit current per MPPT | 35A | 35A | |
| Battery parameters | Battery type | Lithium /Lead-acid | Lithium /Lead-acid |
| Battery voltage range | 20V~30V | 40V~60V | |
| Number of battery input channels | 1 | 1 | |
| Max. charge/discharge power | 3600W/3600W | 6000W/6000W | |
| Max. charge/discharge current | 120A/150A | 120A/125A | |
| BMS communication mode | RS485 | RS485 | |
| AC output (off-grid) | Rated output power | 3600W | 6000W |
| Rated output current | 15.6A | 26.1A | |
| Rated output voltage | 220/230/240Vac | 220/230/240Vac | |
| Rated output frequency | 50/60Hz | 50/60Hz | |
| Max. output apparent power | 3600VA | 6000VA | |
| Peak output apparent power, time | 2*rated power，5s | 2*rated power，5s | |
| Max. output current | 16.4A | 27.3A | |
| THDv (@ linear load) | <3% | <3% | |
| Switching time | 10ms typical (For UPS) 20ms typical (For Home Appliances) |
10ms typical (For UPS) 20ms typical (For Home Appliances) |
|
| Efficiency | Max. MPPT e ciency | 99.9% | 99.9% |
| Max. e ciency | N/A | N/A | |
| European e ciency | N/A | N/A | |
| Max. e ciency of charging/discharging [1] | 90%~93% | 93% | |
| Protection | Inner protection | √Output short circuit protection √Output overvoltage protection | |
| Surge protection | PV: Type III, AC: Type III | ||
| IP | IP54 | IP54 | |
| General parameters | Operating temperature range | -10°C ~ 50°C | -10°C ~ 50°C |
| Relative humidity range | 5%~95% | 5%~95% | |
| Max. operating altitude | 2000m | 2000m | |
| Standby self-consumption [2] | <10W | <10W | |
| Topology | NO-Isolated | NO-Isolated | |
| Installation method | Wall-mounted | Wall-mounted | |
| Cooling mode | Forced air cooling | Forced air cooling | |
| Communication | RS232/RS485/Dry contact | RS232/RS485/Dry contact/WI-FI | |
| Display | LCD | LCD | |
| Mechanical specifications | Mounting | Wall-mounted | Wall-mounted |
| Inverter dimensions (W*H*D) (mm) | 345*435*115 | 345*435*115 | |
| Inverter weight (solar chg) (kg) | 12.1 | 13 | |
| Shipping dimensions (WH*D) (mm) | 365*455*135 | 365*455*135 | |
| Shipping weight (solar chg) (kg) | 13.5 | 15 | |
| Loading(20GP/40GP/40HQ) | |||
