PV Combiner Box

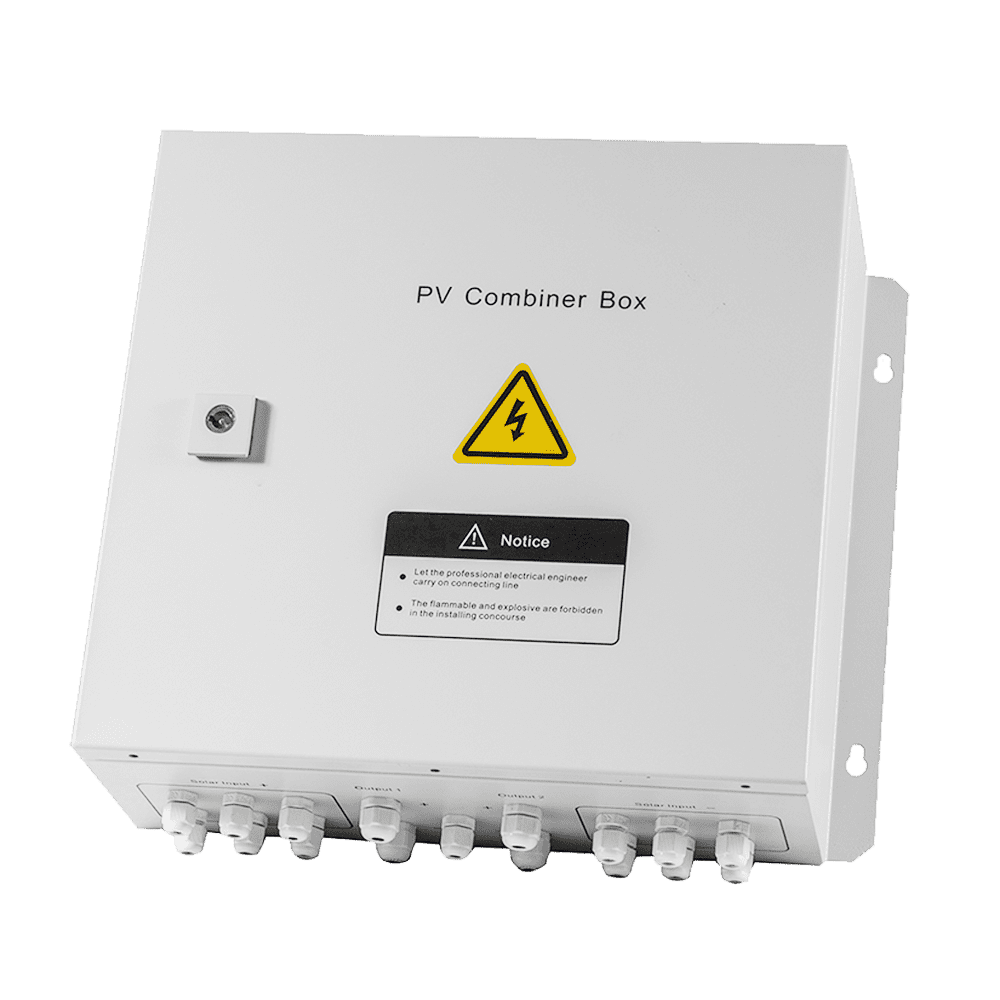

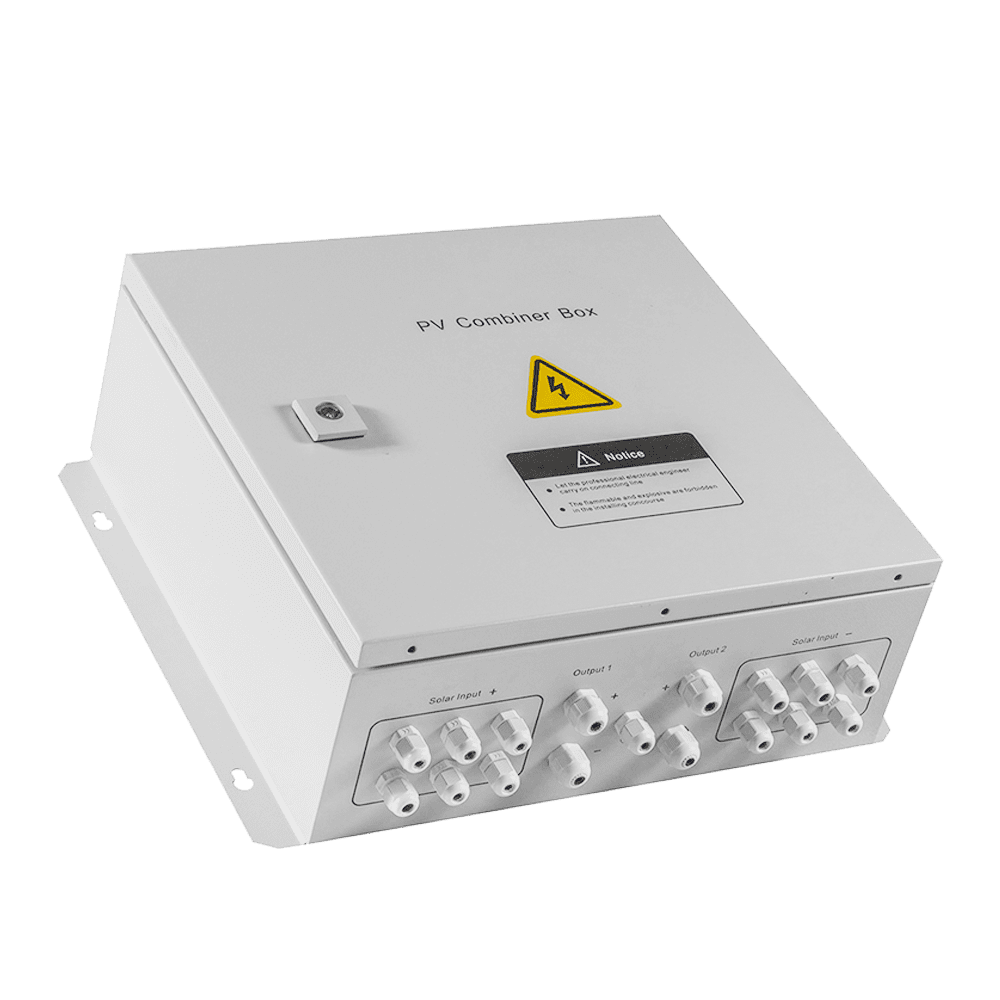

SNADI 1000VDC Photovoltaic Array Combiner Box
SNADI offers a reliable 1000VDC Photovoltaic Array Combiner Box to simplify and streamline your solar PV installation. Trust in our quality and expertise.
●Single way photovoltaic array output, maximum open circuit voltage 1000V
●Photovoltaic special high voltage circuit breaker control output
●Photovoltaic special high voltage lightning protection device protection
Customized production that meets your needs
Model：HT4、HT6、HT8、HT10、HT16
SNADI offers a reliable 1000VDC Photovoltaic Array Combiner Box to simplify and streamline your solar PV installation. Trust in our quality and expertise.
MAIN FEATURES
◆Single way photovoltaic array output, maximum open circuit voltage 1000V.
◆Multiway photovoltaic array input, single way input array maximum current of 10A.
◆Single way photovoltaic array to join the high-voltage fuse protection, counter-attackprotection.
◆Photovoltaic special high voltage lightning protection device protection.
◆Photovoltaic special high voltage circuit breaker control output
◆Meet outdoor installation requirements, protection class Ip65.
| Photovoltaic Array Combiner Box (HT4、HT6、HT8、HT10、HT16) |
|||||
| Product Specifications | |||||
| Model: | HT4 | HT6 | HT8 | HT10 | HT16 |
| PV Array Input Numbers | 4 | 6 | 8 | 10 | 16 |
| Max Single PV Array Current | 16A | ||||
| Single PV Array Fuse | 16A | ||||
| Single PV Array Wire Size | 4mm2 | ||||
| Output Numbers | 1 | ||||
| Max Output Current | 40A | 60A | 80A | 100A | 160A |
| Output Wire Size mm2 | 10mm2 | 16mm2 | 20mm2 | 25mm2 | 35mm2 |
| Max Output Voltage | 1000VDC | ||||
| DC Output Circuit Breaker | Yes | ||||
| Protection | IP65 | ||||
| Temperature Range | -30°C 〜60°C | ||||
| Reference Weight (N.W/G.W.) | 7.6 Kg/13Kg | 12.2 Kg/18.8Kg | |||
| Machine Size (D*W*H) | 458*445*150mm | 458*445*150mm | |||
| Packaging Size (D*W*H) | 510*500*252mm | 620*550*262mm | |||
| Cooling Way | Natural Cooling | ||||
| SPD Protection | 20KA-40KA | ||||
| Ground Wire Size | ≥6mm2 | ||||
