SNADI AL-S Solar Power Generator
SNADI's solar power systems offer reliable and sustainable energy solutions for residential and commercial properties. Our systems are designed to provide clean energy and reduce reliance on traditional power sources. With SNADI's solar power systems, you can reduce your carbon footprint while enjoying the benefits of renewable energy.
●Overcharge protection and overdischarge protection for a longer batter life
●LCD and LEDS for visualization of operation status of the equipment
●Solar array and battery connrnon-anode systerm input;
Customized production that meets your need
Model：AL-S600. AL-S1200. AL-S2200. AL-S5000
SNADI's solar power systems offer reliable and sustainable energy solutions for residential and commercial properties. Our systems are designed to provide clean energy and reduce reliance on traditional power sources. With SNADI's solar power systems, you can reduce your carbon footprint while enjoying the benefits of renewable energy.
MAIN FEATURES
◆Excellent performance because of an MCU intelllgent control technology;
◆A wide range of applicable loads because of pure sine wave AC output;

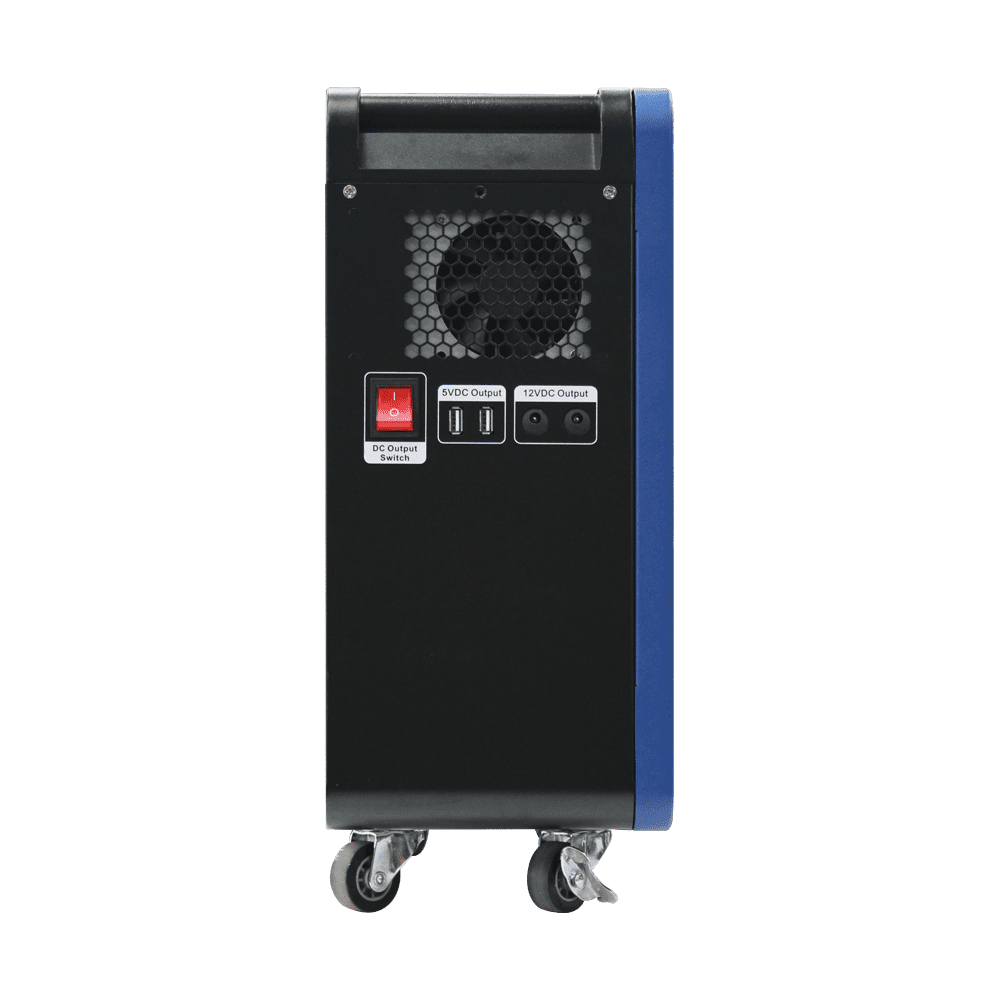

◆Convenient and practical 5VDC USB output port and 12VDC output port;
◆Solar array and battery connrnon-anodesystern input;
◆Charge by mains supply for flexible conflguration (optional function);
◆Overcharge protection and overdischarge protection for a longer battey life;
◆LCD and LEDS for visualization of operation status of the equipment
◆Overall automatic protection and alarms Including AC output over load protection, short circuit protection ,etc.
| AL Solar Power System (AL-S600、AL-S1200、AL-S2200、AL-S3500、AL-S5000) |
||||||
| Product Specifications | ||||||
| Model: AL | AL-S600 | AL-S1200 | AL-S2200 | AL-S3500 | AL-S5000 | |
| Inverter | Battery Voltage | 12.8V | 25.6V | |||
| In-built Battery Specification | 50AH/12.8V | 50AH/25,6V | 100AH/25.6V | 75AH/51.2V | 100AH/51.2V | |
| Rated Power | 600W | 1200W | 2200W | 3500W | 5000W | |
| Output Voltage | 110/220VAC | |||||
| Output Frequency | 50/60Hz | |||||
| Output Waveform | Pure Sine Wave | |||||
| Input Voltage Range | 72-138/145-275VAC | 85-138/1 70-275VAC | ||||
| Input Frequency | 45-65Hz | |||||
| MPPT Charge | Maximum Photovoltaic Voltage | ≤100V | ≤100V | ≤150V | ||
| PV Input Range Voltage | 18-100V | 35-100V | 60-150V | |||
| Rated Charge Current | MPPT 30A | 60A(MAX.) | ||||
| Maximum Power | 420Wp | 840Wp | 1600Wp | 3000Wp | ||
| Voltage Of Floating Charge | 14.2V | 28.4V | 56.8V | |||
| MPPT Efficiency | >97% | >99% | ||||
| DC Output | Voltage Of High-voltage Protection | 16V | 32V | 64V | ||
| Voltage Of High Voltage Recovery | 14.5V | 29V | 58V | |||
| Voltage Of Low Voltage Recovery | 13V | 26V | 52V | |||
| Voltage Of Low Voltage Protection | 11.2V | 22.4V | 44.8 V | |||
| 5VDC USB Output Port | 2 Units/MAX 2A | |||||
| 12VDC Output Port | 2DC Ports/MAX 2A | |||||
| Other | Heat Dissipation/Cooling | Temperature Control By Intelligent Exhaust Fan | ||||
| Ambient Temperature For Operation | -20- + 50°C | |||||
| Ambient Temperature For Storage | -25 -+55°C | |||||
| Operation/Storage Conditions | 0-90% (no condensation | |||||
| External Dimensions: DxWxH (mm) | 460*182*397 | 485*202*406 | 500*229*464 | 577*350*644 | 627*405*664 | |
| Packing Dimensions: DxWxH (mm) | 527*267*470 | 552*277*477 | 570*310*535 | 665*450*825 | 715*505*845 | |
