Lithium Battery Series

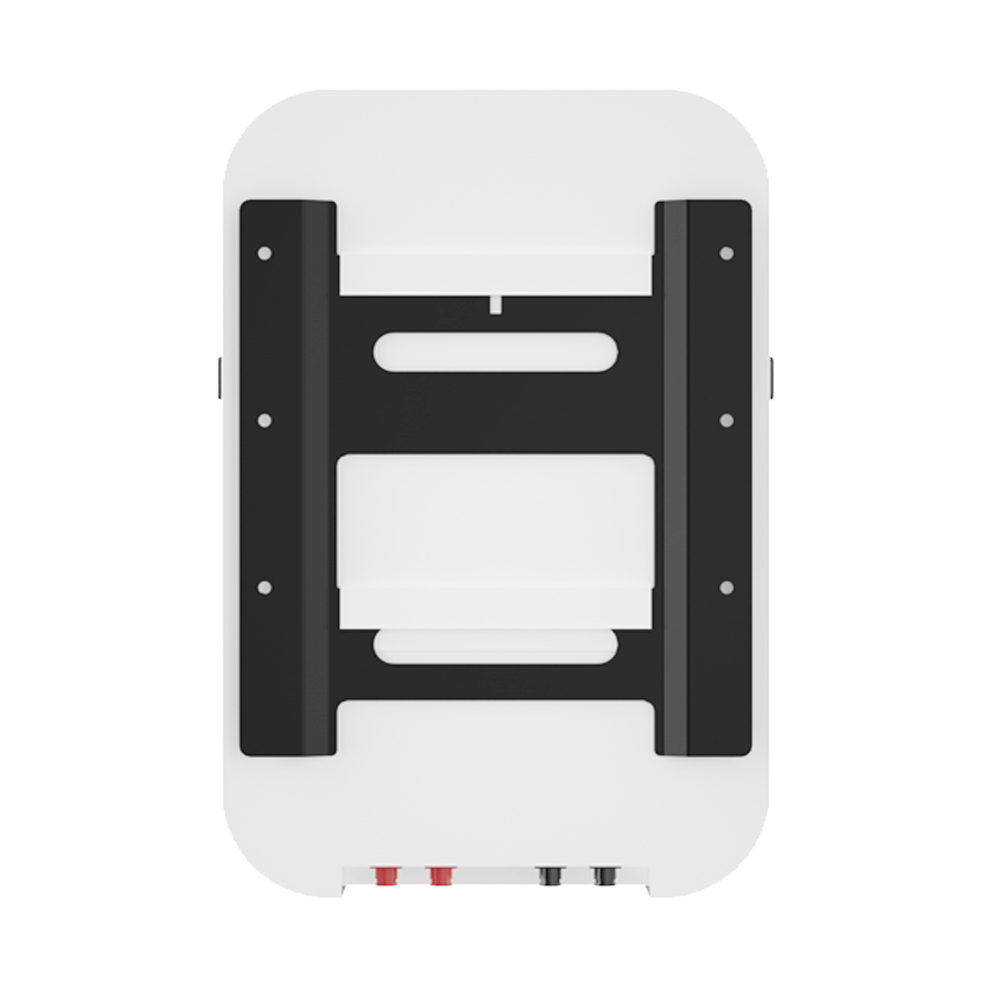

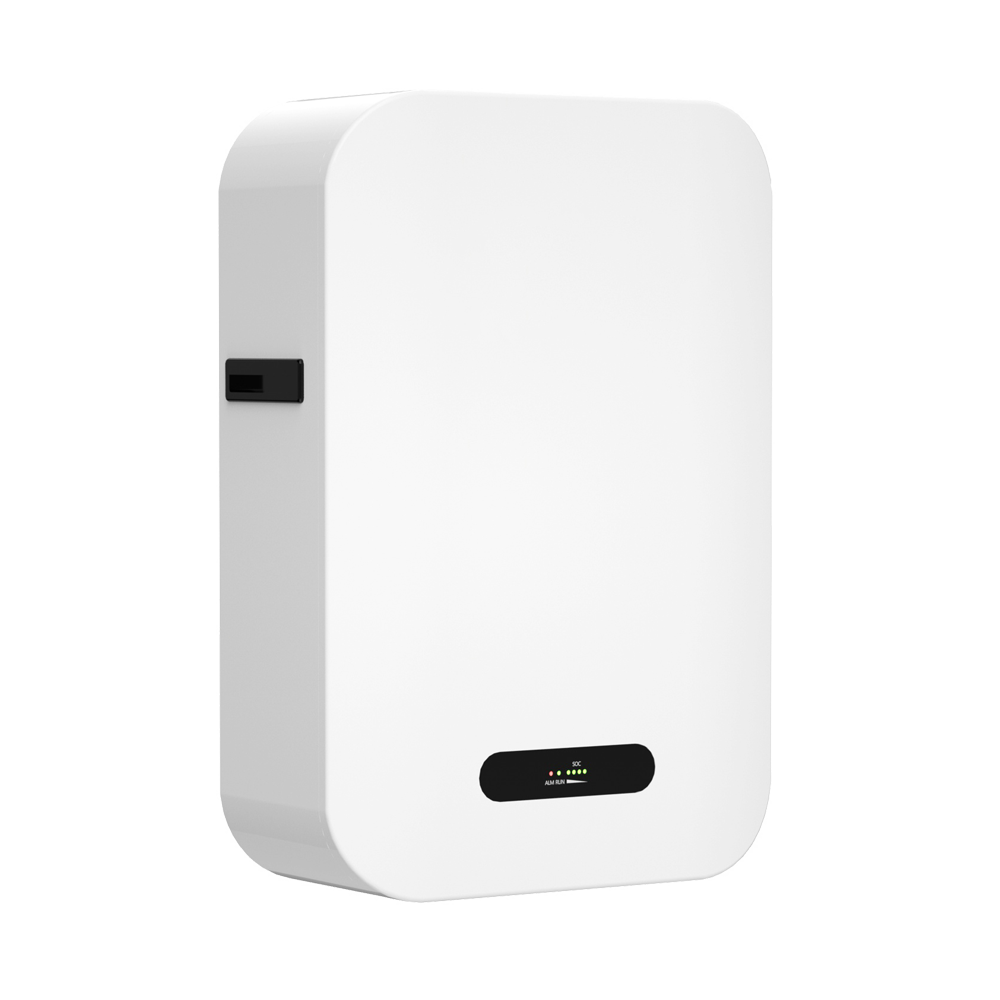

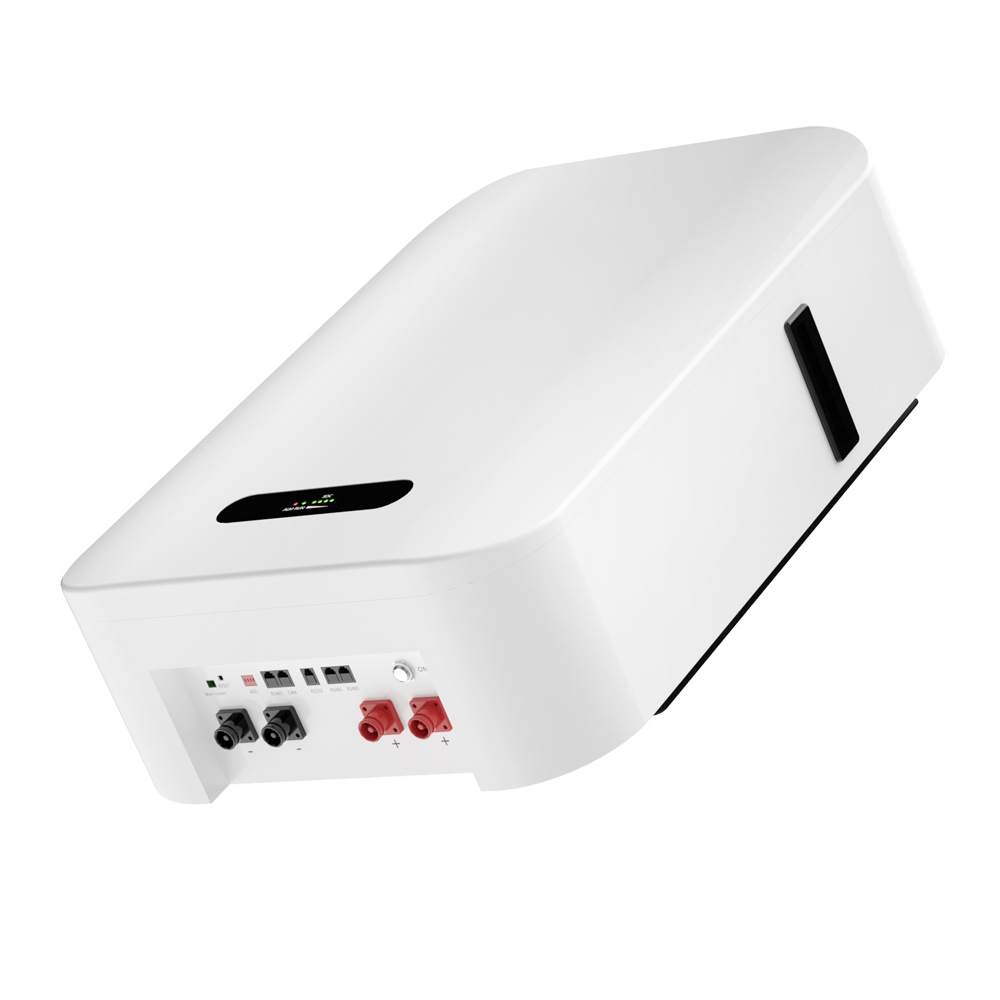

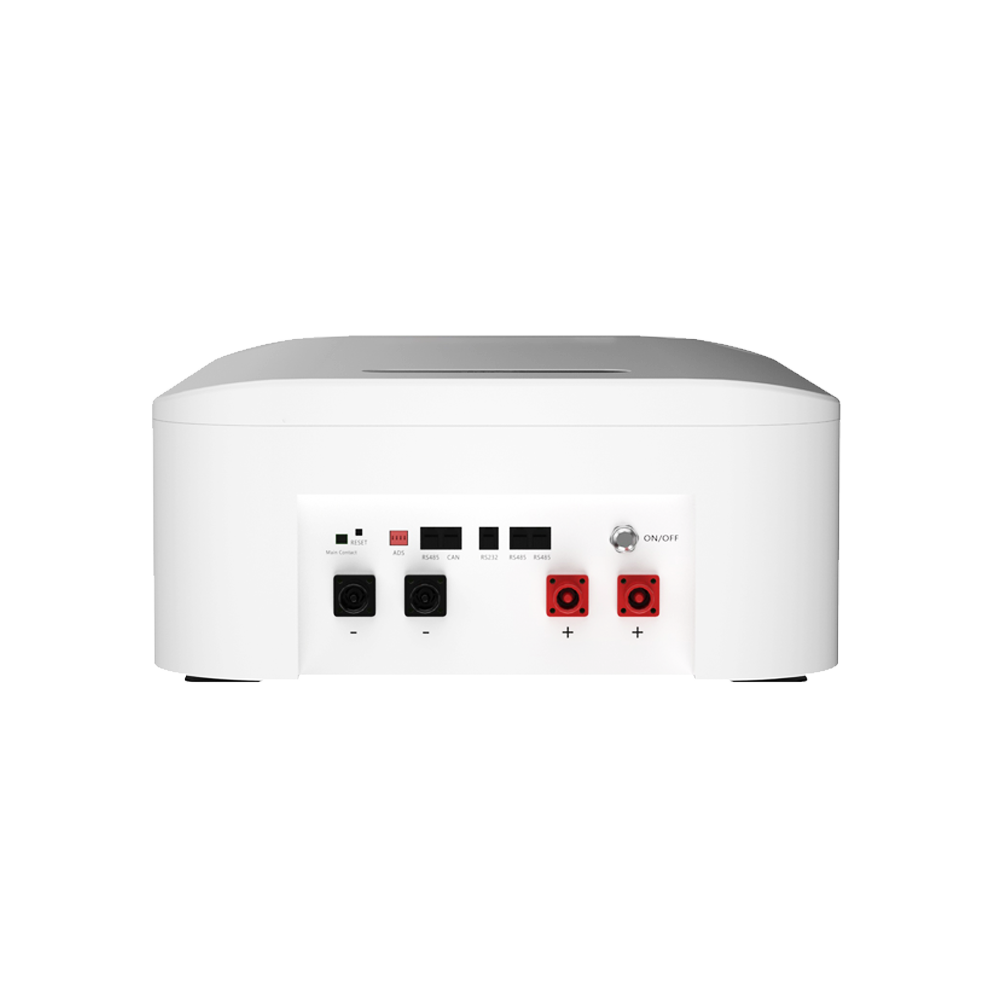

Rechargeahle Wall Mount Li-ion battery Rechargeable Li Ion Battery
SNADI are professional off grid solar products manufacturer,we supply Solar power system and support OEM/ODM service，High-performance rechargeable Li-ion batteries for all your power needs.
●Big discharge current, Suitable for solar system
●Smart BMS system to optimize the eormance
●RS485/CAN compatible with different brand of solar inverter
Customized production that meets your needs
Model：51.2V 100Ah
SNADI are professional off grid solar products manufacturer,we supply Solar power system and support OEM/ODM service，High-performance rechargeable Li-ion batteries for all your power needs.
| Rechargeable Li-ion Battery (51.2V 1 OOAh) |
||||||
| Product Specifications | ||||||
| Items | Specifications | Remark | ||||
| Nominal Capacity | 100Ah | 0.2C Standard discharge | ||||
| Minimum Capacity | 98Ah | |||||
| Nominal Voltage | 3.2V | Mean Operatian Voltage | ||||
| Delivery Voltage | ≥3.2V | Within 10 days from Factory | ||||
| Charge Voltage | 3.65±0.03V | By standard charge method | ||||
| Standard Charging Method | 23±3°C， 0.2C constant current,3.65V constant voltage charge to 3.65V,continue charging till current decline to≤0.02C | |||||
| Charge Current | 0.2C,20A | Standard charge, charge time about 7h(Ref) | ||||
| 0.5C,50A | Rapid Charge, charge time about: 2h(Ref) | |||||
| Standard Discharging Method | 0.2C constant current discharge to2.5V | |||||
| Cell Internal Impedance | ≤2mΩ | Internal resistance measured at AC 1KHZ after 50% charge | ||||
| Maximum Charge Current | 0.5C,50A | For continuous charging mod | ||||
| Maximum Discharge Current | 1C,100A | For continuous discharging mode | ||||
| Operation Temperature and relative humidity Range | Charge: 0.2C(0-10°C) 60±25%R.H.0.5C(10-45°C) | Charge at a very low temperature such as blew 0°C,will | ||||
| Discharge:0.2C(-15~15°C)60±25%R.H.1C(15-60°C) | be get a lower capacity and reduce cycle life of the battery | |||||
| Storage a long temperature time for a long time | 0-45°C60±25%R.H. | Do not storage exceed half year. Must charge once when storage for half year must charge the battery which with protect circuit when storage for three months | ||||
