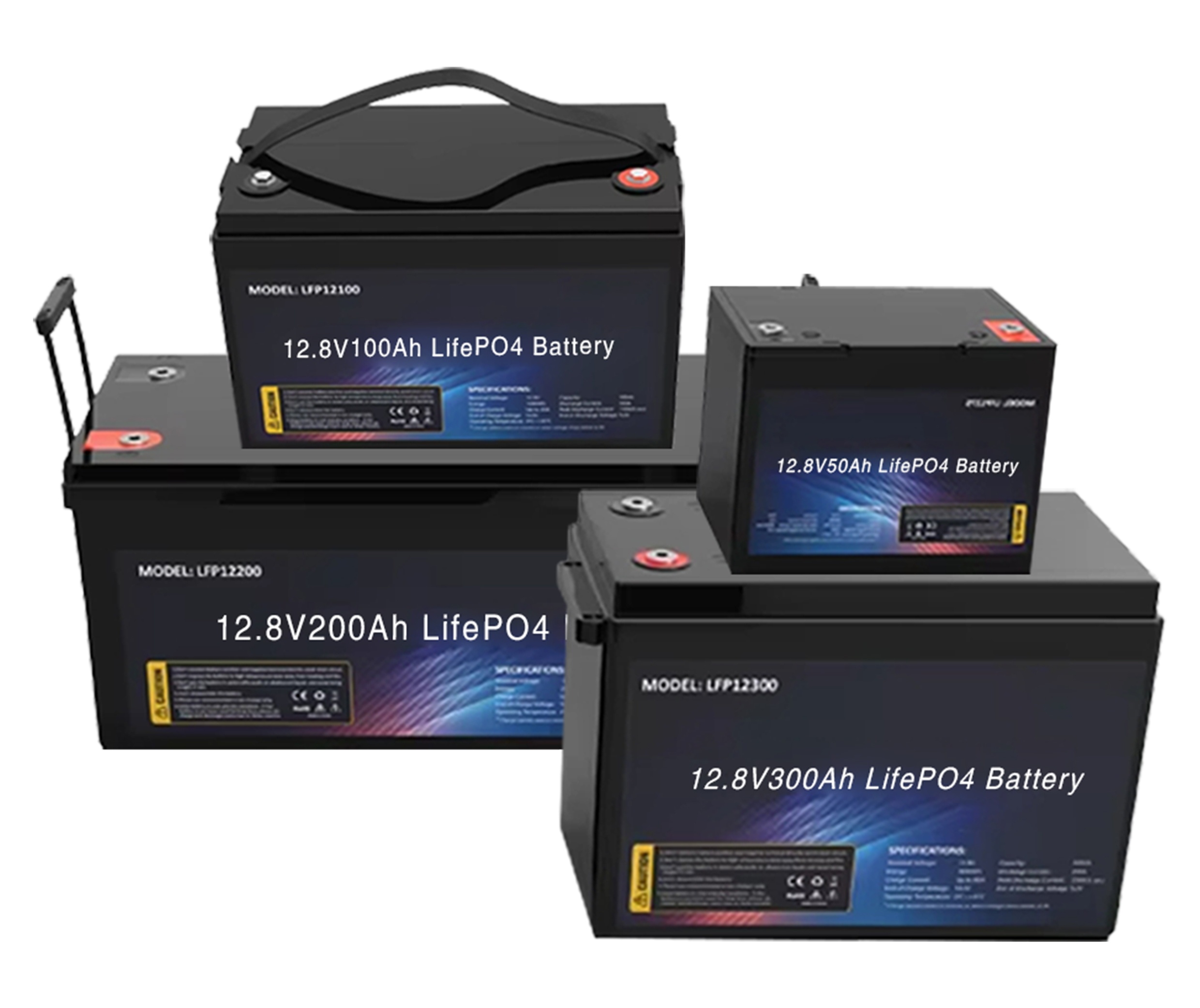

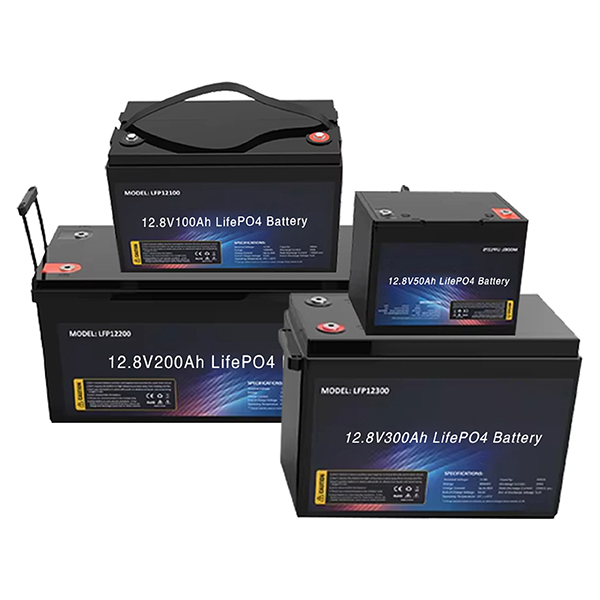

SNADI 12.8~25.6V LiFePO4 Battery

Environmentally friendly LiFePO4 battery with non-toxic materials, long cycle life, and reliable safety. Built-in BMS offers full protection (over-charge/discharge, over-current, temperature). Compact and lightweight for easy installation and maintenance.



●The whole module is non-toxic, non-polluting and environmentally friendly

●Cathode material is made from LiFePO4 with safety performance andlong cycle life
●Battery management system(BMS)has protection functions includingover-discharge,over-charge, over-current and high/low temperature

●Small size and light weight, comfortable for installation and maintenance

Customized production that meets your needs



Model：12.8V(50AH/100AH/200AH/300AH)/25.6(50AH/100AH/200AH)

INQUIRY

Environmentally friendly LiFePO4 battery with non-toxic materials, long cycle life, and reliable safety. Built-in BMS offers full protection (over-charge/discharge, over-current, temperature). Compact and lightweight for easy installation and maintenance.



MAIN FEATURES

◆The whole module is non-toxic, non-polluting and environmentally friendly

◆Cathode material is made from LiFePO4 with safety performance andlong cycle life
◆Battery management system(BMS)has protection functions includingover-discharge,over-charge, over-current and high/low temperature

◆Small size and light weight, comfortable for installation and maintenance



Electrical Voltage 12.8V 25.6V
Electrical Specifications Nominal Capacity 50AH 100AH 200AH 300AH 50AH 100AH 200AH
Energy 640WH 1280WH 2560WH 3840WH 1280WH 2560WH 5120WH
Resistance ≤20mΩ
Efficiency 99%
Self Discharge Monthly<3%
Discharge Specifications Maximum Continuous Discharge Current 50A 100A 200A 200A 50A 100A 200A
Peak Discharge Current 100A 200A 400A 400A 100A 200A 400A
Discharge Cut-off Voltage 10V 20V
Charging Specifications Recommended Charging Current 25A 50A 100A 100A 25A 50A 100A
Maximum Charging Current 50A 100A 200A 200A 50A 100A 200A
Maximum Charge Voltage 14.6V 14.2~14.6V 29.2V
Charging Current (-20~10°C) ≤0.05°C
Mechanical Specifications Size (LWH)mm 229*138*208 260*167*210 502*186*243 384*194*255 330*175*220 521*238*218 521*268*218
Weight(KG) 7.5 12.8 22 28 12 22 45
Terminal Type M8 screw
Housing Material ABS shell
Protection Grade IP65
Cell Type Square aluminum shell
Temperature Specifications Discharge Temperature -20~60°C
Charge Temperature 0~55°C
Storage Temperature -20~40°C
BMS High Temperature 80°C
Reconnect Temperature 50°C
